Lenovo IdeaPad 305 Hard Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Replacing the hard drive in the Lenovo Ideapad 305 is straightforward, you will have to remove a few screw. The computer should be unplugged and the battery should always be disconnected before starting. This will protect you and your device from potential injury or damage. Follow this guide to remove and replace the hard drive in a Lenovo Ideapad 305.

  1. ANtaDg6quepBsRGS

    • Remove the two screws at the back bottom.

  2. YGmtjJP2pViPfCGr

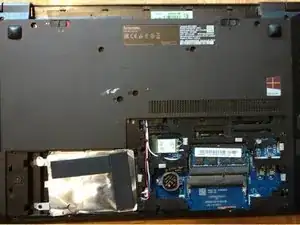

    • Remove the back cover by sliding it out.

  3. HxyNbrD5kG6J1aEa

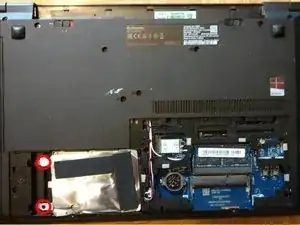

    • Remove the two screws that attach the harddrive to the laptop.

  4. QTZnbEY4AjTcoNrU
    QTZnbEY4AjTcoNrU
    ECpvcI1GWBCA2G1d

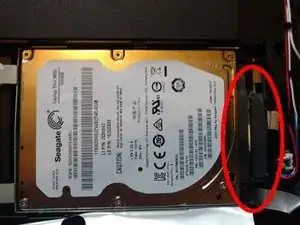

    • Disconnect the harddrive connector by sliding it left. Then remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
