Lenovo IdeaPad 330-15AST Battery Replacement

Geschrieben von: Chloe Powell
  • Kommentare: 0
Lenovo IdeaPad 330-15AST Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 25 Minuten

Einleitung

Guide to safely and effectively replace the battery to the Lenovo IdeaPad 330-15AST.

  1. WCIJeGS1GOqHbLtI

    • Remove the 7 mm Phillips screw from the back of the laptop which holds the optical drive in place.

  2. ZNEkgVdPDghFGvEq

    • Carefully pull the optical drive out from the laptop.

  3. 2SxCdkIJEOMFBL6J

    • Remove the twelve 7 mm Phillips screw from the back of the device.

  4. jdULFeK2QsOvsshP

    • Use opening picks or a plastic pry tool to remove the cover on all sides then lift.

  5. KVHCKM11UxpALfwl

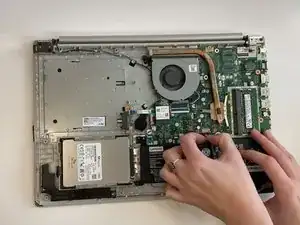

    • Detach the battery pack connector from the motherboard using your fingers or an opening tool.

  6. DoLOHLwlNktG4MCe

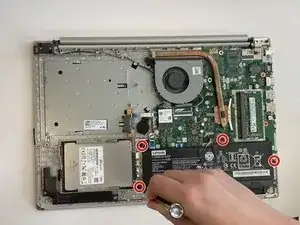

    • Remove the four 7 mm Phillips screws surrounding the battery.

  7. AqXWCDqS5RmsYJZb

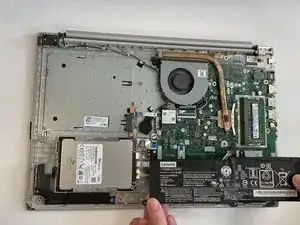

    • Remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
