Lenovo IdeaPad 330-15AST Fan Replacement

Geschrieben von: Chloe Powell
  • Kommentare: 0
Lenovo IdeaPad 330-15AST Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 35 Minuten

Einleitung

Guide to safely and effectively replace the Lenovo IdeaPad 330-15AST fan without damaging the device.

  1. WCIJeGS1GOqHbLtI

    • Remove the 7 mm Phillips screw from the back of the laptop which holds the optical drive in place.

  2. ZNEkgVdPDghFGvEq

    • Carefully pull the optical drive out from the laptop.

  3. 2SxCdkIJEOMFBL6J

    • Remove the twelve 7 mm Phillips screw from the back of the device.

  4. jdULFeK2QsOvsshP

    • Use opening picks or a plastic pry tool to remove the cover on all sides then lift.

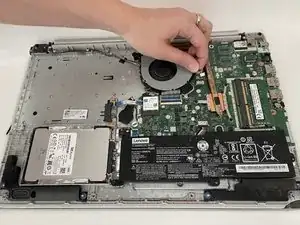

  5. Ptn3upECPym1LwXY

    • Detach the fan connector from the motherboard.

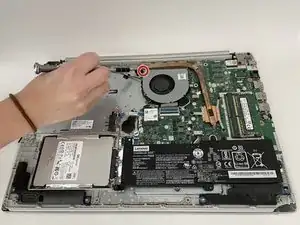

  6. 56RhO3wtflism63p

    • Remove one 7 mm Phillips screw at the corner of the fan.

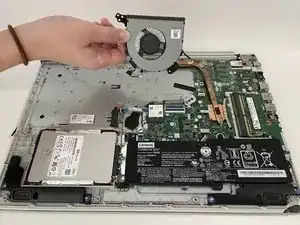

  7. w4vUjCjoPPKrpupT

    • Remove the fan carefully by pulling upwards.

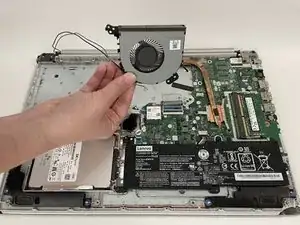

  8. OnJh1NEEMRTyH64N

    • Remove the wires surrounding fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
