Lenovo IdeaPad 330-15AST Hard Drive Replacement

Geschrieben von: Chloe Powell
  • Kommentare: 0
Lenovo IdeaPad 330-15AST Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 - 50 Minuten

Einleitung

In this guide, step by step instructions will show you how to replace the hard drive of your Lenovo IdeaPad 330-15AST laptop.

  1. WCIJeGS1GOqHbLtI

    • Remove the 7 mm Phillips screw from the back of the laptop which holds the optical drive in place.

  2. ZNEkgVdPDghFGvEq

    • Carefully pull the optical drive out from the laptop.

  3. 2SxCdkIJEOMFBL6J

    • Remove the twelve 7 mm Phillips screw from the back of the device.

  4. jdULFeK2QsOvsshP

    • Use opening picks or a plastic pry tool to remove the cover on all sides then lift.

  5. ViVvqFsG4AT1OtZX

    • Detach the battery connector from the socket on the motherboard.

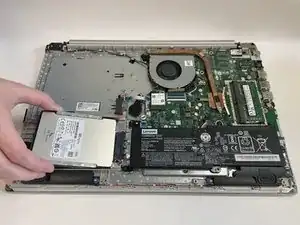

  6. XS1OGVvPiv1RlVGR

    • Pull the hard drive case out to remove it.

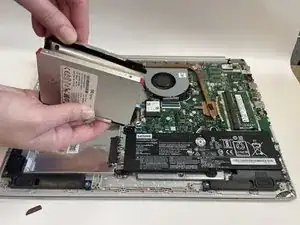

  7. gY6odhjkNGHlQHHx
    gY6odhjkNGHlQHHx

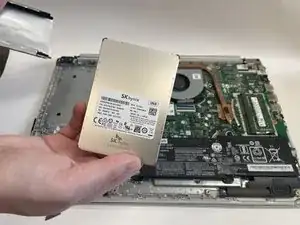

    YJBpP2fRiIdkLYep

    • Remove the hard drive from the hard drive case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
