Lenovo IdeaPad 330-15AST RAM Replacement

Geschrieben von: Chloe Powell
  • Kommentare: 0
Lenovo IdeaPad 330-15AST RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

Guide to safely and effectively replace the Lenovo IdeaPad 330-15AST RAM without damaging the device.

  1. WCIJeGS1GOqHbLtI

    • Remove the 7 mm Phillips screw from the back of the laptop which holds the optical drive in place.

  2. ZNEkgVdPDghFGvEq

    • Carefully pull the optical drive out from the laptop.

  3. 2SxCdkIJEOMFBL6J

    • Remove the twelve 7 mm Phillips screw from the back of the device.

  4. jdULFeK2QsOvsshP

    • Use opening picks or a plastic pry tool to remove the cover on all sides then lift.

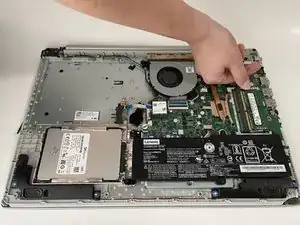

  5. krBiHoskyPoIoEKw

    • Pull the metal arms out slightly that hold the RAM secure by applying pressure with your finger.

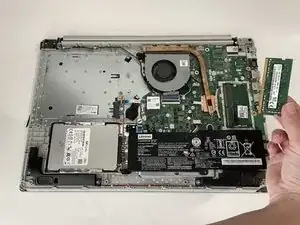

  6. xxCe51G44LMr3ecg

    • Slide the RAM stick out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
