Lenovo IdeaPad 330-15AST Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 - 40 Minuten

Einleitung

Guide to safely and effectively replace the Lenovo IdeaPad 330-15AST internal speakers without damaging the device.

  1. WCIJeGS1GOqHbLtI

    • Remove the 7 mm Phillips screw from the back of the laptop which holds the optical drive in place.

  2. ZNEkgVdPDghFGvEq

    • Carefully pull the optical drive out from the laptop.

  3. 2SxCdkIJEOMFBL6J

    • Remove the twelve 7 mm Phillips screw from the back of the device.

  4. jdULFeK2QsOvsshP

    • Use opening picks or a plastic pry tool to remove the cover on all sides then lift.

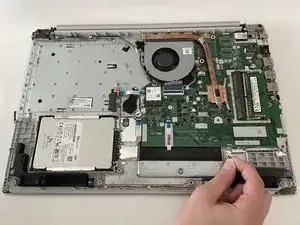

  5. 2BhygngvPHRbRGFu

    • Disconnect the speaker cable from the motherboard.

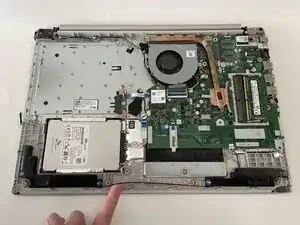

  6. C32JDubhFJXSY6cK

    • Release the cable from the guides at the perimeter of the case.

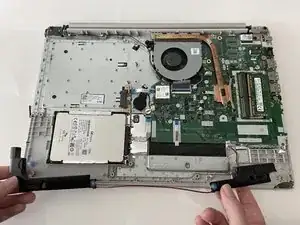

  7. KNYsGWVVJoYjOfYU

    • Remove the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
