Lenovo IdeaPad 330-15IKB Battery Replacement

Geschrieben von: Marian Anghel
  • Kommentare: 0
Lenovo IdeaPad 330-15IKB Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

  1. eEDxLdxEFsQ2yNWY

    • Turn the laptop off and over.

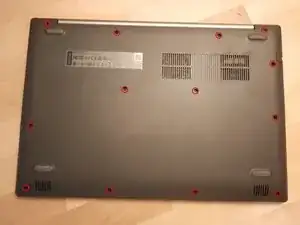

  2. ZNTnJOaAAbl5F1dj
    ZNTnJOaAAbl5F1dj
    BEnel5s1TTxFXRlQ

    • Remove the 13 Phillips-head screws.

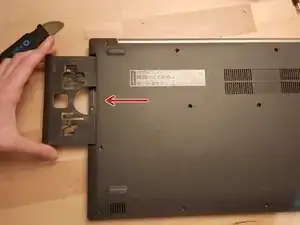

  3. OgfuAdhcim3HUUoI

    • Pull the HDD caddy.

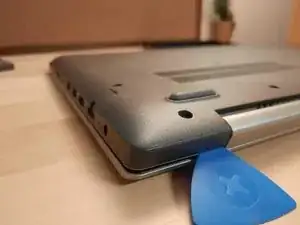

  4. 2aYuoWJYvAxWy3dA

    • Use a spudger or picks to lift open the back panel.

    • There are clips on every side.

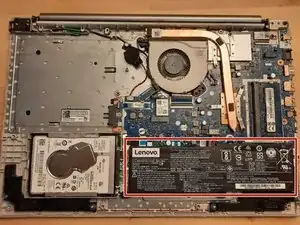

  5. CkMdqkGGOJ6RvUKn

    • The battery is in the lower right corner.

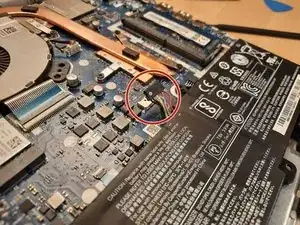

  6. HHGRGS4OcMXLi1wg

    • Unplug the battery connector.

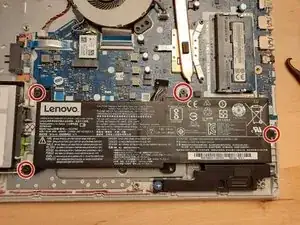

  7. cYvnY2jcYGeHZp5V

    • There are 4 Phillips Head Screws.

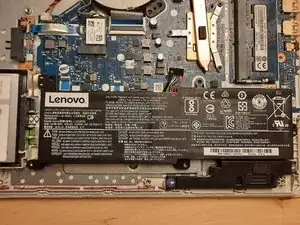

  8. HtIl63yXWN6BmrDC

    • Lift the battery and place in the new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
