Einleitung
After a long time of using your laptop the battery will degrade and will be need to be replaced. This guide will show you how to change it.
Before ordering a new battery make sure you have the correct battery.
Ersatzteile
-
-
Turn off the device and disconnect it from the power supply.
-

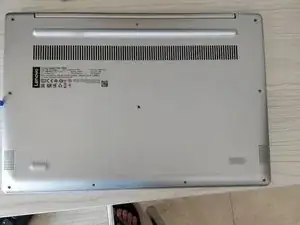

Remove the 10 screws as shown in picture.
-
Using an opening tool pry off the bottom case.
-
-
-

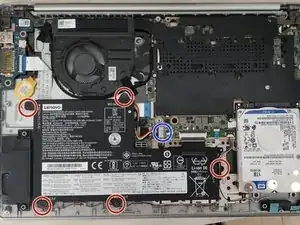

Disconnect the battery by gently pushing the black connector to the left. (Marked in blue).
-
Remove the 5 screws that are marked in red.
-
Install the new battery.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
Make sure you check if your replacement battery is the 12.25v or the 7.4v. This laptop could have came with either.
Actually you could to upgrade your battery from 43 WHR to 52.5 WHR but this requiring little bit research…
