Lenovo IdeaPad 330S RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 20 Minuten

Einleitung

You may find yourself in need of additional memory to feed hungry computer applications such as graphics and video editing tools. If you would like to replace a faulty RAM stick or one with insufficient capacity, follow this guide.

The battery for this device is not easily accessible and will require opening the device. Before you begin your replacement, be sure to disconnect the laptop from any power source. Additionally, we recommend that you turn off the device wait 5 minutes.

If you live in area rich of Static Electricity please advise using an ESD Strap.

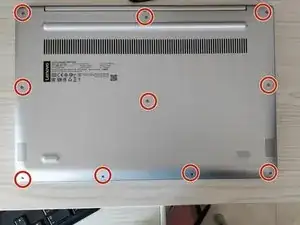

  1. ZZqbjjGK3EACVPdo
    ZZqbjjGK3EACVPdo
    A6Se2vdGXLvgFiHQ

    • Please turn off the laptop before opening the device

    • Remove the 10 screws as shown in the picture.

    • Gently using the tool pry off the bottom case

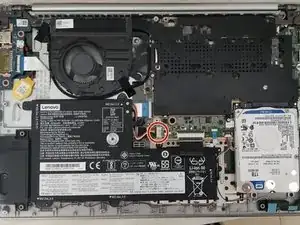

  2. oMWseHKUcBaK1jag

    • Using a spudger gently push the plastic connector to the left in order to disconnect the battery. wisdom here.

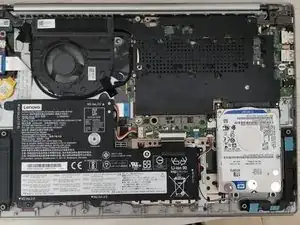

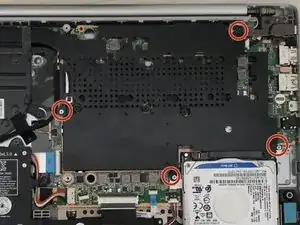

  3. gK6V5ity3MlWYDMT
    gK6V5ity3MlWYDMT
    NVNyOcIFZXtVCcRT

    • Remove these screws as show in picture

    • Gently pry out the black case.

    • Note that one of the screws are Philips 2.5 and not Philips (the black screw top right ).

    Before removing the case, for safety you have to disconnect the battery cable, otherwise you may damage the motherboard when you touch it with the case.

    Gastón Luna -

    Thank you for reminding it. The repair guide have been updated.

    Ilia Tocheny -

    In my case - only 3 screws have to be removed. The top screw is under cover and no need to remove it. Lenovo 330s-15lkb

    Сергей Шацкий -

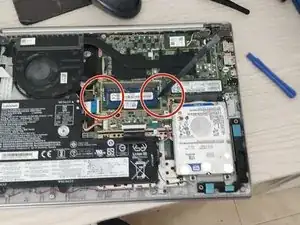

  4. ZZGQNAAdQbGtp1bw

    • Gently using heavy duty spuder remove the old memory

    If you dont have a heavy duty spudger you could use your nails to remove the memory module.

    Ilia Tocheny -

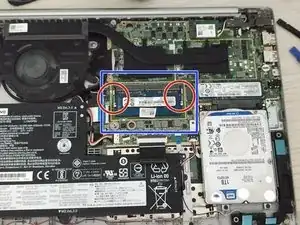

  5. QJHepxwFMItmiJdf

    • Arrange the new ram stick accoring the pin on the motherboard

    • Push Gently on the stick until you hear two clicks

Abschluss

To reassemble the device, install your new stick(s) and follow these instructions in reverse order.
