Lenovo IdeaPad 330S Wireless Lan Card Replacement

Geschrieben von: Ilia Tocheny
  • Kommentare: 3
Lenovo IdeaPad 330S Wireless Lan Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

The WLAN card enables your laptop to access wireless internet networks. This guide shows you how to replace a faulty WLAN card or if you want upgrade to a faster WLAN card I recommend on an Intel AX200 card.

The battery for this device is not easily accessible and cannot be easily removed. Before you begin your replacement, be sure to disconnect the laptop from any power source.

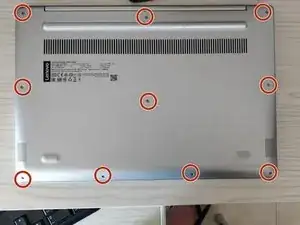

  1. jCXSVHBI3fky4lox
    jCXSVHBI3fky4lox

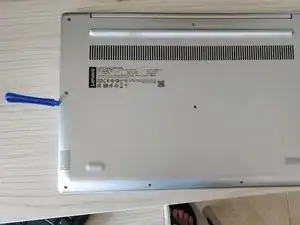

    JnjxwWPcWFaG1oQg

    • Turn the device off.

    • Remove the 10 screws as shown in picture.

    • Using a pry tool , remove the bottom case.

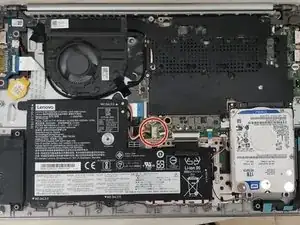

  2. dXMrmRbGDlA4tukV

    • Using a spudger gently push the plastic connector to the left in order to disconnect the battery.

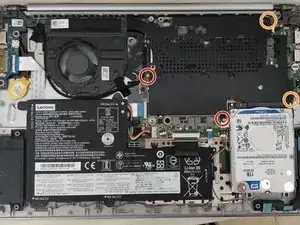

  3. eo5XW1k4sPSeoy1l

    • Remove the three 00# screws.

    • Remove the 2.5 mm screw.

    • Gently pry the shield.

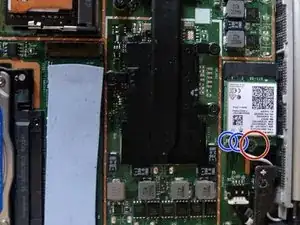

  4. sBPUPsZ6iCgY62SE

    • Before removing the screw (marked in red circle) remove the two antenna cables using the spudger.

    • Remove the screw.

    • The wireless card will lift, remove it.

    • Install the new wireless card.

    Before disconnecting the WLAN I recommend to take a picture in your phone to show where each cable goes.

    Ilia Tocheny -

    can a 330s 15-arr ryzen 5 use this ax200? currently using ac 3165, worried that it will cause bios whitelist issue

    Kaizoku 62 -

    You could try to buy it from amazon usually whitelist issue is for Laptop meant for business.

    Ilia Tocheny -

Abschluss

To reassemble your device, follow these instructions in reverse order.
