Lenovo IdeaPad A1-07 Back Cover/Midframe Replacement

Geschrieben von: Madison Cranmer
  • Kommentare: 0
Lenovo IdeaPad A1-07 Back Cover/Midframe Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

The back cover and midframe of the Lenovo IdeaPad A1-07 may need to be replaced they are damaged with a scratch or normal wear and tear. This guide will walk you through how to carefully take the back cover and grey frame apart.

  1. RAoLNcXIHLUT5wKs
    RAoLNcXIHLUT5wKs
    JkNgHXyWN5uDFC3m
    xPmVrMMKVRQNjHJc

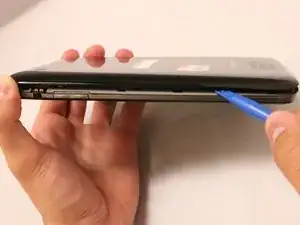

    • With the blue plastic opening tool, use the lock screen switch by the volume button as an access point to gently lift the back cover off.

    • Wedge the opening tool until you start hearing the back cover popping off the body of the device.

    • Slide the opening tool down the length of the device.

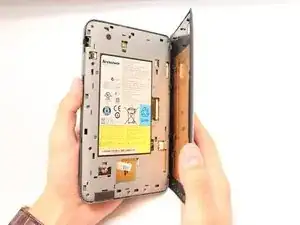

    • Once it is about half way off, you can use your thumb to pull the rest of the back cover off.

  2. GRRQCxTD6jxivELE
    GRRQCxTD6jxivELE
    qjREciuPL1nOWvC4
    bSR14Ct14GF1sTYT

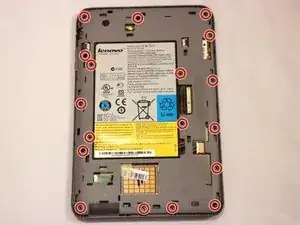

    • Using a Phillips #000 screwdriver, remove all 18 of the 4mm screws.

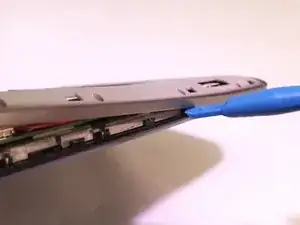

    • With the blue plastic opening tool, gently wedge the tool between the screen and the gray frame until you feel resistance.

    • Do not force the frame off because you can break off the teeth securing the frame to the screen.

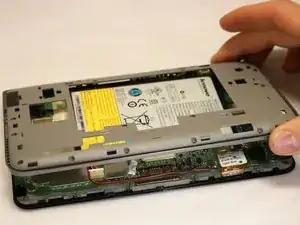

    • Push in the teeth with the blue plastic opening tool, towards the center of the device, and gently pull off the frame.

    • The gray frame will still be connected to the device by a pair of wires from the motherboard to the speaker.

  3. LDtVmQqDldvwohUN
    LDtVmQqDldvwohUN
    vDX6QvmRXml4NWWS

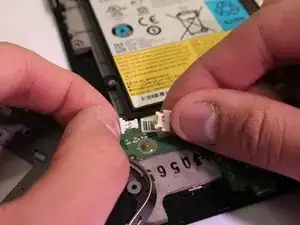

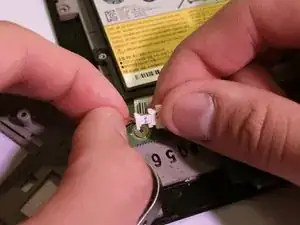

    • The speaker in the grey frame is connected to the motherboard by the white plastic connector.

    • Disconnect the speaker by separating the two sides of the speaker connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
