Lenovo IdeaPad A1-07 Speaker Replacement

Geschrieben von: Madison Cranmer
  • Kommentare: 0
Lenovo IdeaPad A1-07 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

The speaker of the Lenovo IdeaPad A1-07 may need to be replaced if the speaker no longer produces quality sound or no sound at all. With time the speaker can degrade from constant use. This guide will walk you through how to carefully take the tablet apart to access and remove the speaker from the device.

  1. RAoLNcXIHLUT5wKs
    RAoLNcXIHLUT5wKs
    JkNgHXyWN5uDFC3m
    xPmVrMMKVRQNjHJc

    • With the blue plastic opening tool, use the lock screen switch by the volume button as an access point to gently lift the back cover off.

    • Wedge the opening tool until you start hearing the back cover popping off the body of the device.

    • Slide the opening tool down the length of the device.

    • Once it is about half way off, you can use your thumb to pull the rest of the back cover off.

  2. GRRQCxTD6jxivELE
    GRRQCxTD6jxivELE
    qjREciuPL1nOWvC4
    bSR14Ct14GF1sTYT

    • Using a Phillips #000 screwdriver, remove all 18 of the 4mm screws.

    • With the blue plastic opening tool, gently wedge the tool between the screen and the gray frame until you feel resistance.

    • Do not force the frame off because you can break off the teeth securing the frame to the screen.

    • Push in the teeth with the blue plastic opening tool, towards the center of the device, and gently pull off the frame.

    • The gray frame will still be connected to the device by a pair of wires from the motherboard to the speaker.

  3. LDtVmQqDldvwohUN
    LDtVmQqDldvwohUN
    vDX6QvmRXml4NWWS

    • The speaker in the grey frame is connected to the motherboard by the white plastic connector.

    • Disconnect the speaker by separating the two sides of the speaker connector.

  4. b2rXeJswUOMvoSXN
    b2rXeJswUOMvoSXN
    WA2SrENLsIBANXW6

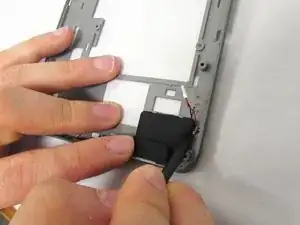

    • The speaker can be found on the plastic grey frame in the bottom right hand corner.

    • Use the black spudger tool to push the top right of the rubber speaker in towards the center of the frame to unclip it.

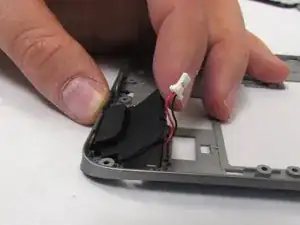

    • Once unclipped, you can lift and remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
