Lenovo IdeaPad Flex 4-1470 RAM Replacement

Geschrieben von: Demario Robinson
  • Kommentare: 7
Lenovo IdeaPad Flex 4-1470 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide covers the process of replacing the random access memory (RAM) in your Lenovo Ideapad Flex 4-1470.

RAM serves as the middle man between the computer's central processing unit (CPU) and its Hard Drive. It stores information that the CPU is currently processing for quick random access.

If your computer's performance diminishes with prolonged use, it restarts of freezes sporadically or files become corrupted when used often, you may need to replace your RAM.

Replacing your RAM is also a good way to increase the speed of a cheaper or older computer as the RAM often "Bottlenecks" the system by limiting the amount of information the CPU has access to at a given time.

  1. LhxZe4fE54XQPD1Y

    • Ensure your computer is completely OFF before starting this guide.

    • Remove the eight 6 mm screws using a Phillips #0 screwdriver.

    • Remove the two 11 mm screws using a Phillips #0 screwdriver.

    I have to know how long the pins are in the clips that hold the hinges in place. I don’t want to destroy my tablet.

    otlerelron -

    Mine had ten tiny little star screws. Not Phillips.

    Justen Hansen -

  2. kVyGdJF2MWdchreF
    kVyGdJF2MWdchreF
    MZJShKusbnjGgYrJ

    • Pry the back cover off by inserting the plastic opening tool at the hinges and wedging it between the Back cover and the body.

    • Follow along the back edge with the plastic opening tool, lifting the cover off as you go. It is normal to hear snapping/clicking sounds as the back cover is held on by clips.

    • Remove the cover.

  3. weNAVWXG6lLRNDek
    weNAVWXG6lLRNDek
    cFCD2uDBAOt15uNM

    • RAM cards can be damaged from exposure to a static charge through contact with the hand or other body parts. Though the damage of one discharge is not severe, multiple exposures can cause your RAM to fail.

    • When changing the RAM please wear an anti-static wrist strap on your dominant hand and attach the alligator clips to one of the screw holes in the laptop body.

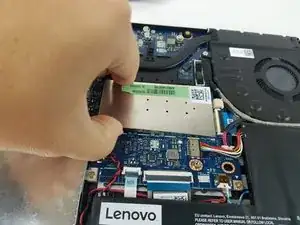

    • Using a metal spudger, pry the RAM cover out of the clips on the motherboard. You will need to go around all sides.

    • Remove the cover.

    • When replacing the cover make sure it is in all of the clips.

  4. N6HX1OMD4jnxTp1h
    N6HX1OMD4jnxTp1h
    yOCOVRWFxvrISbHN

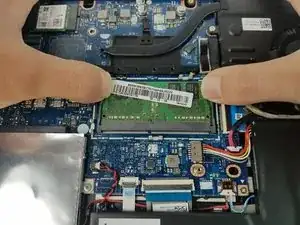

    • To remove the RAM card simply pull the clips on the sides outwards and the RAM will tilt up.

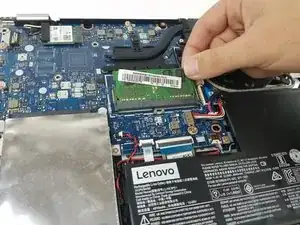

    • Gently pull the RAM out of the motherboard.

    • When inserting a new RAM card, ensure you put it in at an angle just like it came out. Then push it down into the clips.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Demario Robinson

Mitglied seit: 02/10/17

1029 Reputation

5 Kommentare

I am an older lady and I know I couldn;t possibly do that,do you have any advice

diane nodwell -

To Diane: Take your device to Best Buy Geek Squad or to Device Pit Stop. Otherwise, Do you have a skilled nephew / neighbor who can replicate this?

Raul Soria -

Can you please confirm if the DDR4 PC4-21300 RAM is accepted by the Flex4? Thanks!

Raul Soria -

SIW shows as if there are two memory slots.

Serg Strikov -

Hey there,

Any suggestions on which RAM card to buy to replace this one? I have 2 GB of RAM now that came with the laptop and I obviously want to replace it to try and speed up my Lenovo. Will it damage the laptop if the RAM is “too much” for the pc? Can I find a single RAM card that is more than 8 GB or faster? What GB do you suggest for faster speeds?

Thanks for your help.

Christine Portanova -
