Lenovo IdeaPad Flex 4-1470 Touchpad Replacement

Geschrieben von: Elijah Ellis
  • Kommentare: 4
Lenovo IdeaPad Flex 4-1470 Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

The touch pad is the laptop's on-board mouse analogue, and as such is important for the laptop's operation. To remove and replace it you will need the proper, specific replacement part.

  1. LhxZe4fE54XQPD1Y

    • Ensure your computer is completely OFF before starting this guide.

    • Remove the eight 6 mm screws using a Phillips #0 screwdriver.

    • Remove the two 11 mm screws using a Phillips #0 screwdriver.

    I have to know how long the pins are in the clips that hold the hinges in place. I don’t want to destroy my tablet.

    otlerelron -

    Mine had ten tiny little star screws. Not Phillips.

    Justen Hansen -

  2. kVyGdJF2MWdchreF
    kVyGdJF2MWdchreF
    MZJShKusbnjGgYrJ

    • Pry the back cover off by inserting the plastic opening tool at the hinges and wedging it between the Back cover and the body.

    • Follow along the back edge with the plastic opening tool, lifting the cover off as you go. It is normal to hear snapping/clicking sounds as the back cover is held on by clips.

    • Remove the cover.

  3. 1VYMfnUdaGo61iIf
    1VYMfnUdaGo61iIf
    Ii6KNkPZDShsbPVG

    • Disconnect the battery connector by using a plastic pry tool or your fingers to push the cable right towards the battery.

    • Do not pry or push on the socket itself or you risk damaging the motherboard.

  4. UZN25HHVfolhU6Bi

    • Remove the three 4 mm Phillips #0 screws holding the battery in place.

  5. NXhZSKRwANRrOQNP

    • Lift the battery up and out of the laptop.

  6. T4dQmIBhPhbNcVkM

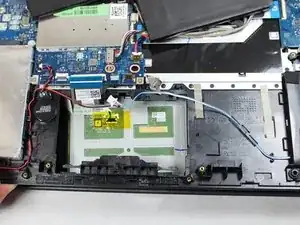

    • Locate the touchpad.

  7. WUSVHsNMrdL1NCZS
    WUSVHsNMrdL1NCZS
    6bdEAQieGDyGQMQI

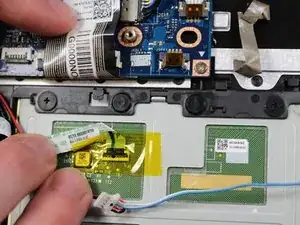

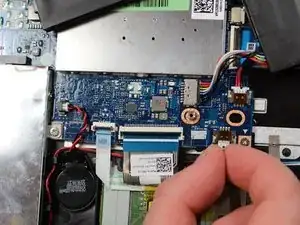

    • Remove the three ribbon cables surrounding the touch pad.

  8. GkoGGSlZcurowhGK

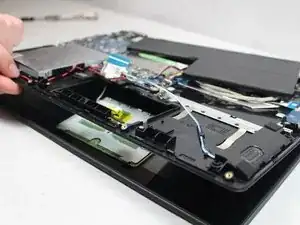

    • Lift the base of the laptop from the screen and gently push the touchpad to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
