Einleitung
This hub, located along the side of the laptop, allows for external storage and peripherals to be connect to the computer. It is relatively simple to replace, and is not inherently necessary for most day-to-day usage of the laptop.
Werkzeuge
-
-

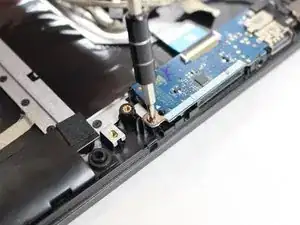

Remove the eight 6 mm screws using a Phillips #0 screwdriver.
-
Remove the two 11 mm screws using a Phillips #0 screwdriver.
-
-
-
Pry the back cover off by inserting the plastic opening tool at the hinges and wedging it between the Back cover and the body.
-
Follow along the back edge with the plastic opening tool, lifting the cover off as you go. It is normal to hear snapping/clicking sounds as the back cover is held on by clips.
-
Remove the cover.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
I have to know how long the pins are in the clips that hold the hinges in place. I don’t want to destroy my tablet.
otlerelron -
Mine had ten tiny little star screws. Not Phillips.
Justen Hansen -
