Einleitung
This guide will show you how to remove and replace the battery of your Lenovo IdeaPad Flex 5 14ARE05.
Ersatzteile
-
-

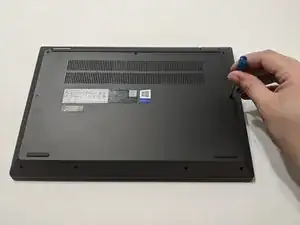

Remove the five 8 mm screws using a T5 Torx Screwdriver.
-

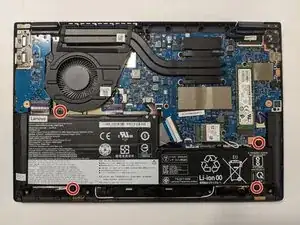

Remove the four 5 mm screws using a T5 Torx Screwdriver.
-
-
-

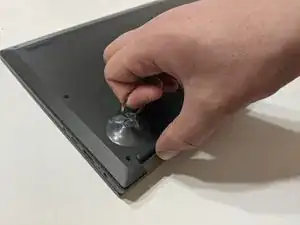

Use a small suction cup to pull open the back case at the two hinge cutouts.
-

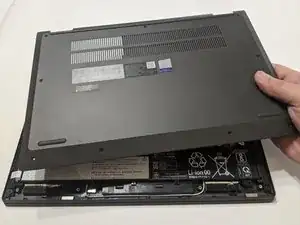

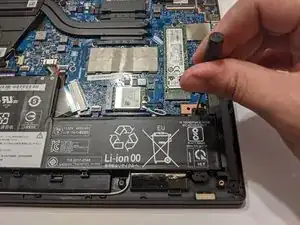

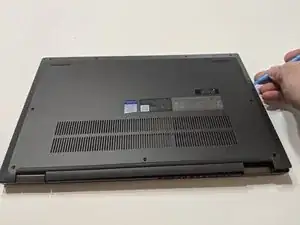

Gently, use the plastic opening tool around the edges of the laptop to pry up the rest of the back panel.
-
-
-
Rotate the device 90 degrees.
-

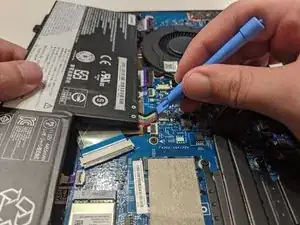

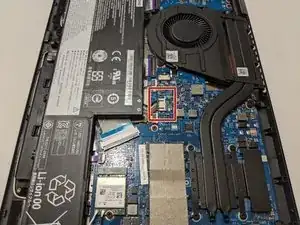

Gently lift up on the battery and use a spudger to disconnect the battery connector.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
