Lenovo IdeaPad Flex 5-1470 Motherboard Replacement

Geschrieben von: Randall Welton
  • Kommentare: 0
Lenovo IdeaPad Flex 5-1470 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 25 Minuten

Einleitung

This is a guide for how to replace a Lenovo IdeaPad Flex 5-1470 motherboard. Common reasons to replace the motherboard are because of overheating, power surges, old age or just overuse.

  1. h4f2IxJTkqCRG5UV

    • Remove all ten 6.6 mm screws with a Phillips #00 screwdriver.

  2. nO5vhpUNeoqgOO3r
    nO5vhpUNeoqgOO3r
    Tfi2aK5FGoQXC6PH

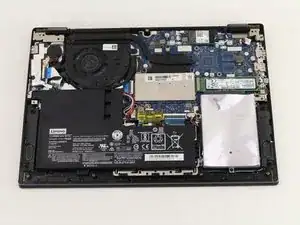

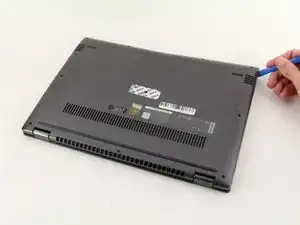

    • Use the plastic opening tool to lift up and remove the casing.

  3. 1qZkwhunSHKWvtcw

    • Remove the single 3.6 mm screw using a Phillips #00 screwdriver.

    • The SSD will pop up on its own after removing the screw.

  4. akWN4tqGCbWl1VuA
    akWN4tqGCbWl1VuA
    SImn1UkEG2Eq2D3W
    WcxNZM6CDOAZQ1mb

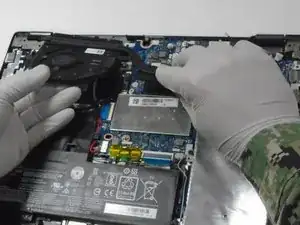

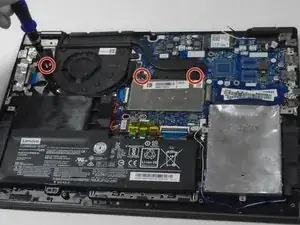

    • Use a Phillips #00 screwdriver to remove the three screws securing the fan.

    • Lift the fan up and out.

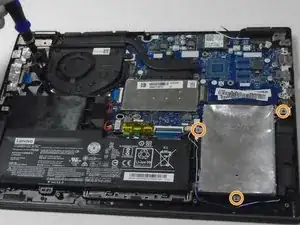

    • Use a Phillips #00 screwdriver to remove the three screws securing the hard drive.

    • Lift the hard drive up and out.

  5. jDLT41m2iQmDNfek
    jDLT41m2iQmDNfek
    a4fkxFcPOdeLROjO

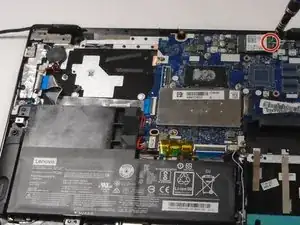

    • Use a Phillips #00 screwdriver to remove the single screw securing the Wi-Fi card.

    • The Wi-Fi card will slightly lift away from the motherboard.

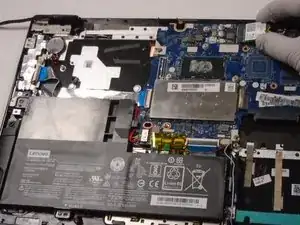

    • Pull the Wi-Fi card directly out of its port.

  6. cUZfEB2QxIgbLcNP
    cUZfEB2QxIgbLcNP
    JwYZJLGT1mwLm6vr

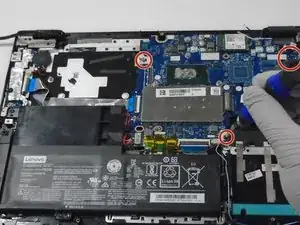

    • Use a Phillips #00 screwdriver to remove the three screws securing the motherboard.

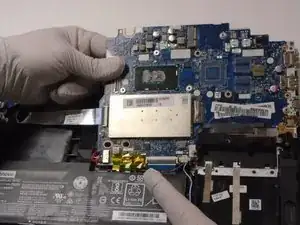

    • Gently disconnect the cables and ribbon cables connected to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
