Lenovo IdeaPad Flex 5-1470 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

25 Minuten

Einleitung

  1. h4f2IxJTkqCRG5UV

    • Remove all ten 6.6 mm screws with a Phillips #00 screwdriver.

  2. nO5vhpUNeoqgOO3r
    nO5vhpUNeoqgOO3r
    Tfi2aK5FGoQXC6PH

    • Use the plastic opening tool to lift up and remove the casing.

  3. OZdDeCDXLAu24DMG

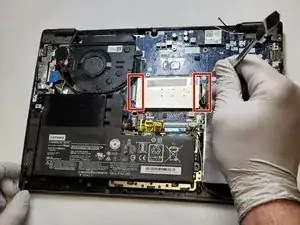

    • Use a spudger to gently bend down the locking tabs on the RAM casing.

  4. SakUSZekbcc5bKy4

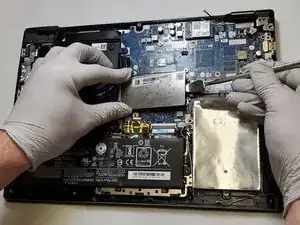

    • Use a spudger to gently lift the RAM casing, then lift it up and off.

  5. GGrNNRV1xcGHCHZu
    GGrNNRV1xcGHCHZu
    UPH5PXELIE2Gt4rv

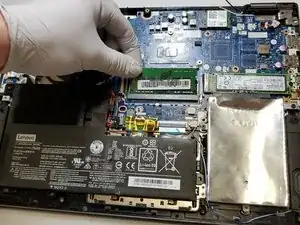

    • Gently take hold of the RAM card and lift slightly.

    • Pull the RAM card directly out of its port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
