Lenovo IdeaPad Flex 5-1470 Wireless Network Adapter Replacement

Geschrieben von: Emily Lau
  • Kommentare: 1
Lenovo IdeaPad Flex 5-1470 Wireless Network Adapter Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

If your Lenovo IdeaPad Flex 5-1470 (Model Name: 80XA Model Number: 80XA0001US) is refusing to connect to wireless connections and your wireless network adapter has stopped working, simply follow this guide. The wireless network adapter is a small chip located in the top right corner of the device that allows the laptop to successfully connect to Wi-Fi connections.

  1. h4f2IxJTkqCRG5UV

    • Remove all ten 6.6 mm screws with a Phillips #00 screwdriver.

  2. nO5vhpUNeoqgOO3r
    nO5vhpUNeoqgOO3r
    Tfi2aK5FGoQXC6PH

    • Use the plastic opening tool to lift up and remove the casing.

  3. ZiQ3IUH5O2ywGMXj
    ZiQ3IUH5O2ywGMXj
    dPAXDS3Qda2IPumG

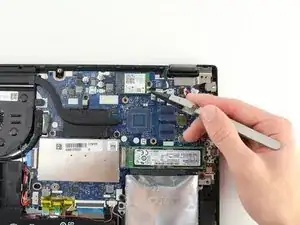

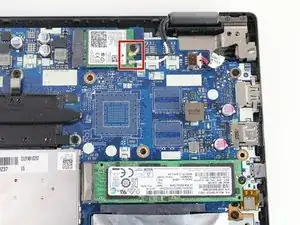

    • Use the reverse tweezers to carefully unplug the two wired connections.

    • Be careful when removing the wire connections to avoid damage to the metal connections on the adapter.

  4. 2cWqCY11TlEOoXQ2
    2cWqCY11TlEOoXQ2
    jODmL1XXZYJxDVxx

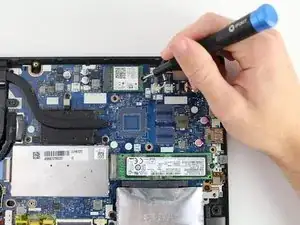

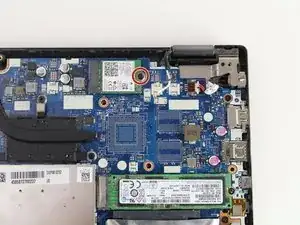

    • Using the Phillips #00 screwdriver, remove one 3.6 mm screw.

  5. fR3FWaVs6bo2aYxa

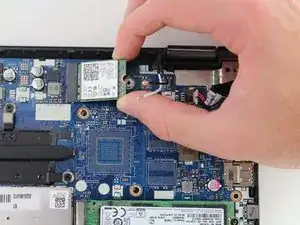

    • Remove the wireless network adapter.

Abschluss

To reassemble your device, follow these instructions in reverse order.
