Lenovo IdeaPad Flex 6-14IKB Battery Replacement

Geschrieben von: Ryan Reish
  • Kommentare: 0
Lenovo IdeaPad Flex 6-14IKB Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

1 Stunde

Einleitung

This guide will show you how to replace the battery in your Lenovo IdeaPad Flex 6-14IKB. The battery is an essential part of the laptop because it is the energy storage device. The battery gives power to the laptop while it is not plugged into a charger. Your battery may need replacement if your laptop only powers on while plugged into a charger or it discharges very quickly when unplugged.

Before starting the replacement, make sure the laptop is fully turned off and unplugged from a power cord.

  1. sBCRgi65i6KFSAZm

    • Remove the ten 6.5 mm screws that secure the base cover using a T5 Torx screwdriver.

  2. t4rZOGZNtIQTWumC

    • Use the plastic opening tool to pry in the seam between the bottom cover and the rest of the laptop.

    • The goal is to unhook the plastic hooks that secure the bottom cover.

    • Work your way around the bottom cover of the laptop in a clockwise rotation until every clip is free.

    • You will feel and hear a clicking noise when the clips are undone.

  3. cLplv1VromUucjkl

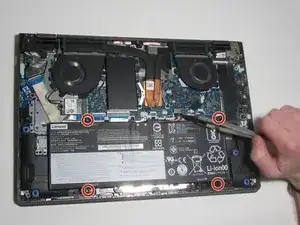

    • Remove the four 3.5 mm screws around the battery using a Phillips #00 screwdriver.

  4. xu5IHvPjYb3PQe4E
    xu5IHvPjYb3PQe4E
    YPfgVfs6XygXuqTb

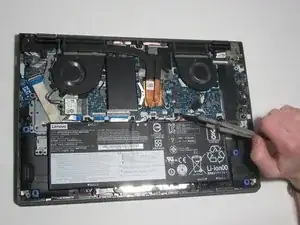

    • Disconnect the battery supply from the motherboard using a pair of tweezers.

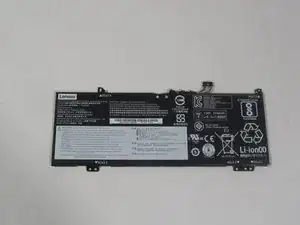

    • Remove the battery from the laptop.

    • If the battery has an adhesive patch on the underside, gently pry off the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
