Lenovo IdeaPad Flex 6-14IKB SSD Card Replacement

Geschrieben von: Nico Magtoto
  • Kommentare: 0
Lenovo IdeaPad Flex 6-14IKB SSD Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

35 Minuten

Einleitung

This guide will walk you through the steps of removing the SSD card. The SSD card is essential to the Lenovo IdeaPad Flex 6-14IKB because it allows for the laptop to obtain storage and the memory of the device.

  1. sBCRgi65i6KFSAZm

    • Remove the ten 6.5 mm screws that secure the base cover using a T5 Torx screwdriver.

  2. t4rZOGZNtIQTWumC

    • Use the plastic opening tool to pry in the seam between the bottom cover and the rest of the laptop.

    • The goal is to unhook the plastic hooks that secure the bottom cover.

    • Work your way around the bottom cover of the laptop in a clockwise rotation until every clip is free.

    • You will feel and hear a clicking noise when the clips are undone.

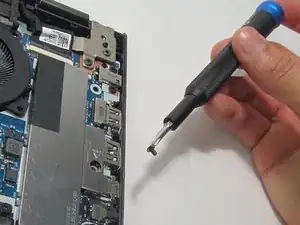

  3. CeGy6o4TZnhfPnWq

    • Remove the single 3.5 mm screw that secures the SSD card using a Phillips #00 screwdriver.

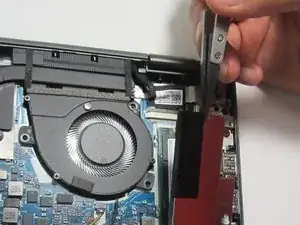

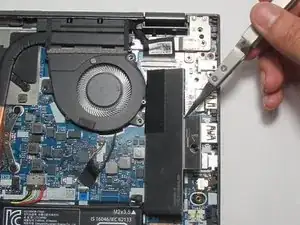

  4. GLvnXXTmhx4SrKHV
    GLvnXXTmhx4SrKHV
    UcAC24YacDplvKTK

    • Use tweezers to gently pry up the protective cover off of the SSD card.

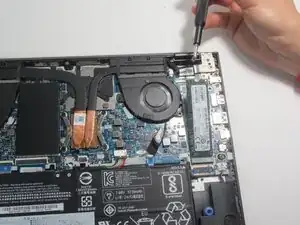

  5. JfEnLcLZ5lPlhcHg

    • Remove the single 3.5 mm screw that secures the SSD card using a Phillips #00 screwdriver.

    • The SSD card will spring up to one side on its own.

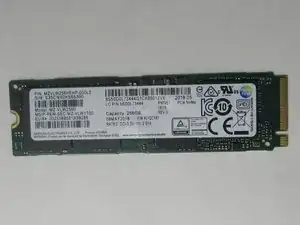

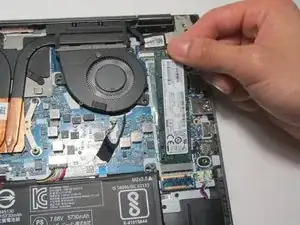

  6. dCiOuE16oMrBNUOe
    dCiOuE16oMrBNUOe
    kEFJagGKJa21Z4dg

    • Remove the SSD from the motherboard.

    • When reinstalling the SSD, push the SSD card back into its slot. The SSD card will click into place when it is secure and then rest at a 30 degree angle from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
