Lenovo IdeaPad Flex 6-14IKB Speakers Replacement

Geschrieben von: Nico Magtoto
  • Kommentare: 0
Lenovo IdeaPad Flex 6-14IKB Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 Minuten

Einleitung

This guide will walk you through the steps of replacing the speakers in the Lenovo IdeaPad Flex 6-14IKB. The speakers are essential to this laptop because they allow the user to hear sound. This guide will come to good use if you notice audio problems that arise on your laptop.

  1. sBCRgi65i6KFSAZm

    • Remove the ten 6.5 mm screws that secure the base cover using a T5 Torx screwdriver.

  2. t4rZOGZNtIQTWumC

    • Use the plastic opening tool to pry in the seam between the bottom cover and the rest of the laptop.

    • The goal is to unhook the plastic hooks that secure the bottom cover.

    • Work your way around the bottom cover of the laptop in a clockwise rotation until every clip is free.

    • You will feel and hear a clicking noise when the clips are undone.

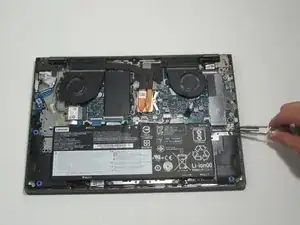

  3. cfg6oQWk2S12qmix
    cfg6oQWk2S12qmix
    xmeGBNPXdwJAbTXB

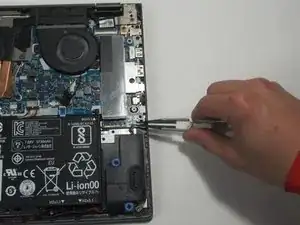

    • Unplug the wire connector from the speaker using the tweezers.

  4. 1dA3nGeJKiqB6Ew1
    1dA3nGeJKiqB6Ew1
    T5NTioqUE4bfFhTy

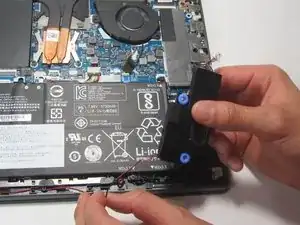

    • Lift the right side speaker off of the pins that the speaker is resting on using an iFixit opening tool.

  5. sq21oVVBFPPZKNPT

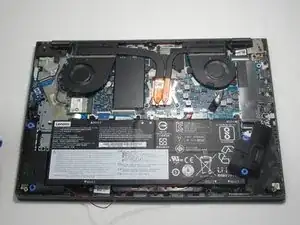

    • Unwind the red and black wire that connects the two speakers from the plastic clips that secure it.

  6. bnaIn3O5qTGQD1KL

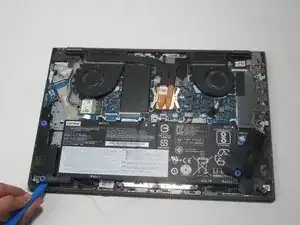

    • Lift the left side speaker off of the pins that the speaker is resting on using an iFixit opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
