Lenovo IdeaPad Flex 6-14IKB Wi-Fi Card Replacement

Geschrieben von: Nico Magtoto
  • Kommentare: 1
Lenovo IdeaPad Flex 6-14IKB Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace the Wi-Fi card in your Lenovo IdeaPad Flex 6-14IKB. The Wi-Fi card is a vital part of your device as it allows you to connect your device to others in your home or office.

Before starting the replacement, make sure the laptop is fully turned off and unplugged from a power cord.

  1. sBCRgi65i6KFSAZm

    • Remove the ten 6.5 mm screws that secure the base cover using a T5 Torx screwdriver.

  2. t4rZOGZNtIQTWumC

    • Use the plastic opening tool to pry in the seam between the bottom cover and the rest of the laptop.

    • The goal is to unhook the plastic hooks that secure the bottom cover.

    • Work your way around the bottom cover of the laptop in a clockwise rotation until every clip is free.

    • You will feel and hear a clicking noise when the clips are undone.

  3. Yl5ThN2yEPc5HvKD

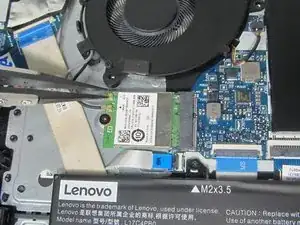

    Yl5ThN2yEPc5HvKD

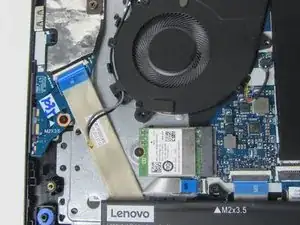

    t3D35KnBgXaQXkJM

    • Detach the gray and black wires from the Wi-Fi card.

  4. oMfw2SHpisjlUwJ2

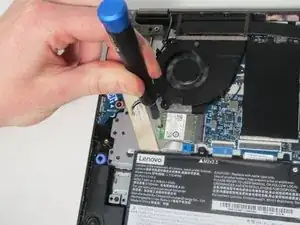

    oMfw2SHpisjlUwJ2

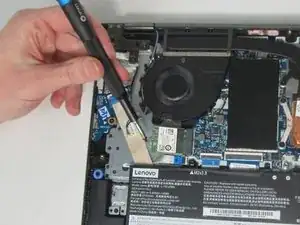

    CFBq6lOTQlbgRtcQ

    • Remove the single 3.5 mm screw that secures the Wi-Fi card using a Phillips #00 screwdriver.

  5. aYTyVxtYtG25jqoG
    aYTyVxtYtG25jqoG

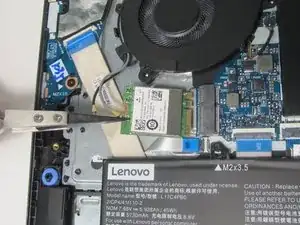

    WbfAJtEAAbwZxlPt

    • Remove the Wi-Fi card from its slot using tweezers.

    • When reinstalling, the gray wire goes into the connector labeled number 1. The black wire goes into the connector labeled number 2. You will hear an audible click when it is properly clipped back into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
