Lenovo IdeaPad N586 Wifi card Replacement

Geschrieben von: Christopher
  • Kommentare: 0
Lenovo IdeaPad N586 Wifi card Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. wyH5ZtGfvt3tXZCP
    wyH5ZtGfvt3tXZCP
    STVRrDRyJfyEVMNu

    • To unlock the battery, flip the laptop over so that the bottom is facing upward. Then unlock the left clip by pushing the clip to the left.

  2. bd446o4IKQMB6xSy
    bd446o4IKQMB6xSy
    VJQZSXe2HRGCANqO

    • Now push the right clip to the right and hold it while using your other hand to pull the battery out.

  3. TVRhT2UK1XHQLNtb

    • Remove the two screws highlighted.

  4. tmNa6EQwNHqYuMAc

    • This is the back of the laptop with the cover removed.

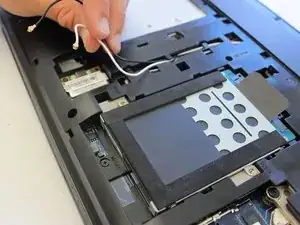

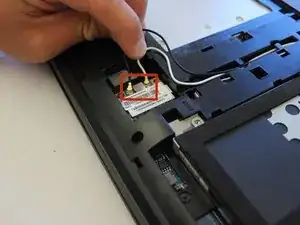

  5. 1hGOBrAPhlIEQ5UK
    1hGOBrAPhlIEQ5UK
    Qfs5pPKVKrZAahrM

    • Remove the white and black wires.

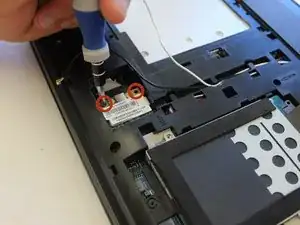

  6. 2jotuuYEUruCV1IW
    2jotuuYEUruCV1IW
    GIKbTXyHTl6KWblC

    • Next, unscrew the wifi card

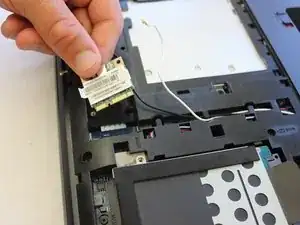

  7. RPpKsHEANjoEGNkW

    • Pull out the wifi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
