Einleitung

Replacing the keyboard on your laptop can be necessary if your keyboard is no longer responding. You will need a nylon or metal spudger. Make sure that the power is off before continuing.

Werkzeuge

  1. lmbIAB6nqWDKveSF

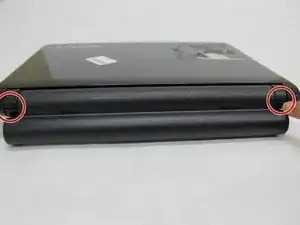

    • Rotate the laptop so the back side is facing you.

    • From this side, you should be able to see both of the gaps where the two plastic materials meet.

  2. U6SrbOxB3a1LKv4Z
    U6SrbOxB3a1LKv4Z
    E3IVAdcR5DDvjYCw

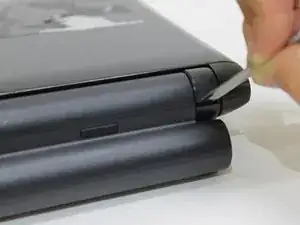

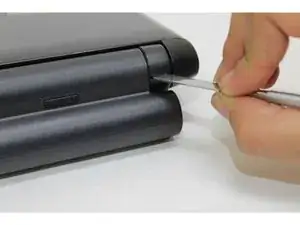

    • Wedge the nylon or metal spudger inside the gap and pry open the two plastic parts.

  3. oVk4q35f1uQ5iPRS
    oVk4q35f1uQ5iPRS
    gAEFdgX5FWfZUeNp

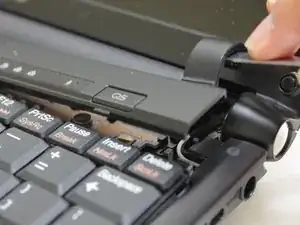

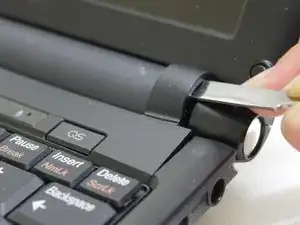

    • Open the laptop.

    • Place the nylon or metal spudger under the top half that is loose and pull up to pry it open.

  4. NPWtV1abYLWwhcuk
    NPWtV1abYLWwhcuk
    JGmnbuTrhRTseZNU
    MmZIXbPk6MfyLUGR

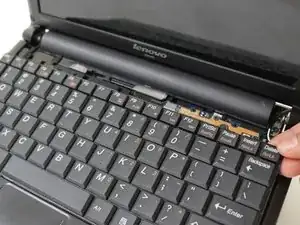

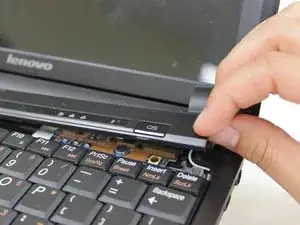

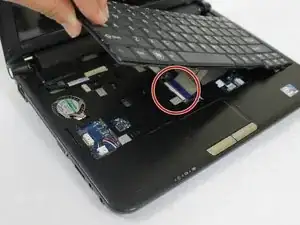

    • Pull up on the loose component to remove.

    • As you lift the keyboard, you should be able to see a strip connected to the laptop.

  5. 36SDfWP16SxPAuSM
    36SDfWP16SxPAuSM
    CUgKXDOhRWqS3uaG
    etXNkmaYwtaHyQRK

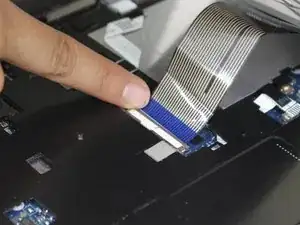

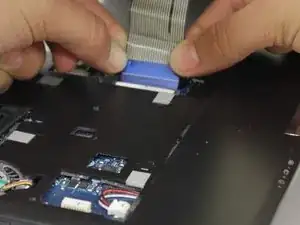

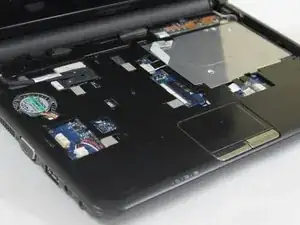

    • Remove the strip by pulling both sides of the blue strip out.

    • Lift and remove the keyboard from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
