Lenovo IdeaPad S10-2 Wireless WiFi Card Replacement

Geschrieben von: Lucy Mendez
  • Kommentare: 0
Lenovo IdeaPad S10-2 Wireless WiFi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

If you're experiencing problems connecting to the internet there may be issues with your wireless card. The replacement requires the flat end of a spudger and a Phillips J0 head screwdriver. The cost of a wireless card ranges between $7 to $20.

Werkzeuge

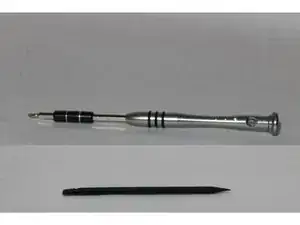

  1. Cm6AJg5yIgjCOH2Q

    • The tools needed are the blunt edge of the spudger and a Phillips J0 head screwdriver.

    • Ensure your device is powered off before continuing.

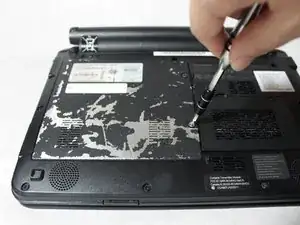

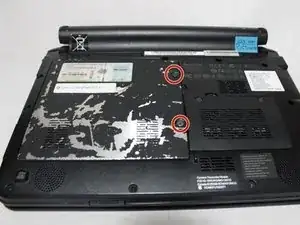

  2. rwj1JeTarLfmPMHn
    rwj1JeTarLfmPMHn
    GOEsZ2laly11ZbLP

    • Turn the laptop over to begin.

    • Remove the two 40 mm screws with a Phillips J0 head screwdriver.

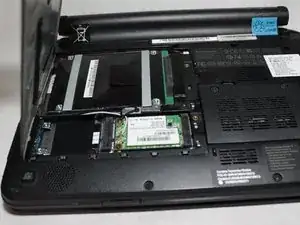

  3. uJUVGHFKqdkPVApZ
    uJUVGHFKqdkPVApZ
    IrPALRnGwmTZy1XZ

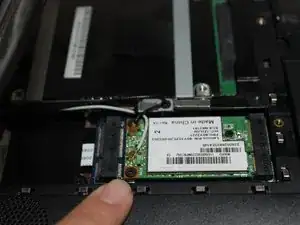

    • The WiFi card is found near the bottom of the panel.

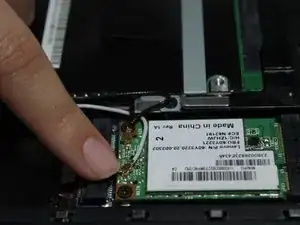

  4. KqF3oTR4pfRteHt2
    KqF3oTR4pfRteHt2
    nhwOsldYgWCHeien
    M4cTQQUkoFqcm3uM

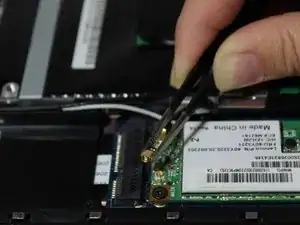

    • Do not use the metal precision tweezers as shown.

    • Using the blunt end of the spudger, wedge the spudger beneath the connector and pull straight up to remove the white wire. Repeat to remove the black connector.

    • When reinstalling these U.FL connectors, hold the connector in place and gently push down. The connector should snap into place like a button.

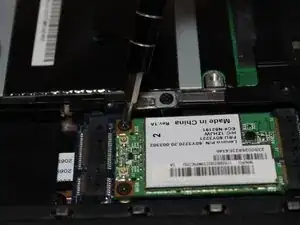

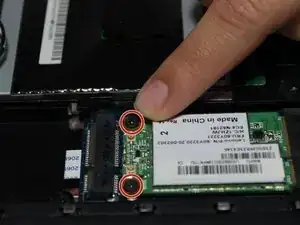

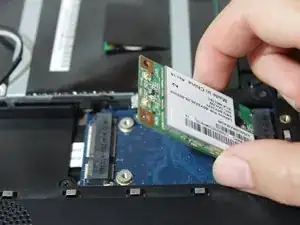

  5. iZEiLOTwIsOXecVE
    iZEiLOTwIsOXecVE
    glB42FcJ3d4FoNIJ
    RMEJUXUpQbtCuP1S

    • Remove the two 40 mm screws using a Phillips J0 head screwdriver.

    • Lift and remove the WiFi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
