Lenovo IdeaPad S210 Touch Back Panel Replacement

Geschrieben von: Zack Colman

Kommentare: 7

Lenovo IdeaPad S210 Touch Back Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 Minuten

Einleitung

This guide will teach you how to replace the back panel of your Lenovo IdeaPad S210 Touch. The back panel of any device helps keep out unwanted substances.

Removing this panel is essential for any system repairs. Please note that keeping the panel clean also helps the laptop maintain an ideal temperature.

Werkzeuge

Schritt 1

Ensure your device is unplugged and shut down.

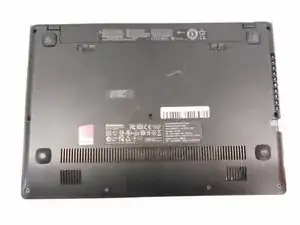

Place the laptop down with the cooling vents facing upwards.

Schritt 2

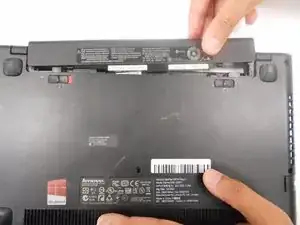

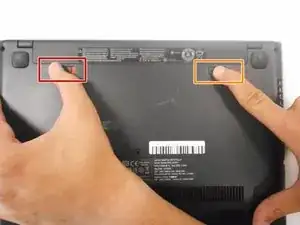

Use your finger to slide the latch towards the unlocked position (away from the other latch). If done correctly you will see red.
Slide the second latch to the unlocked position while gently pulling the battery away from the laptop.

For the picture displaying the two slide latches maybe demonstrate the direction they need to slide

Christopher Graveline - 30/07/19

Which direction should you pull the battery? (e.g., away from the device).

Alex Watkins - 31/07/19

Schritt 3

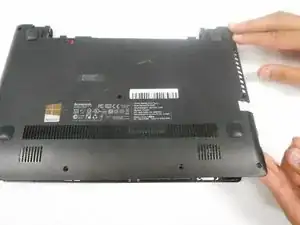

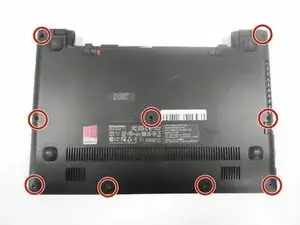

Using the #0 Phillips screwdriver, remove the nine 4mm screws on the back panel.

I think you can remove the caution, since it was removed in the previous step.

Alex Watkins - 31/07/19

Make sure to write the last sentence as a complete sentence.

Alex Watkins - 31/07/19

Schritt 4

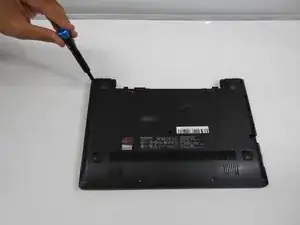

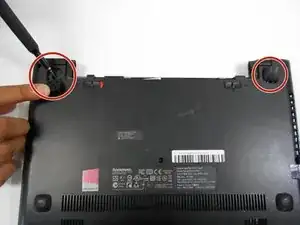

Gently pull the two rubber feet closest to battery away from the device. Using a #0 Phillips screwdriver, remove the 5mm screw under each rubber foot.
