Lenovo IdeaPad S210 Touch Motherboard Replacement

For the picture displaying the two slide latches maybe demonstrate the direction they need to slide

Which direction should you pull the battery? (e.g., away from the device).

I think you can remove the caution, since it was removed in the previous step.

Make sure to write the last sentence as a complete sentence.

Specifying the tool used would be a great addition to this step.

I agree, and I also think you want to add action shots here.

Consider adding an action shot here. Also, use circles only for screws, and boxes for other elements.

The 00 screw driver worked better for this step.

Add screwdriver to the text above, here.

This is another place where an action shot would help.

Locate step should be removed here. Also be sure to check punctuation and capitalization on all steps. Here, locate hard drive is a sentence, so end with a period, and hard drive doesn’t need to be capitalized.

Do you have any pictures that show the wires you’re talking about?

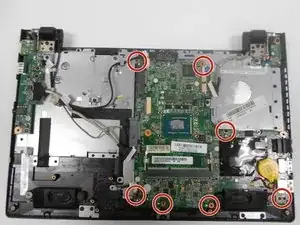

Only 1 of the 4 screws is marked.

Agreed—I also think an intermediary step might be helpful that shows what it looks like before you start sliding. Is there a specific direction you have to slide?

Remember to remove locate steps.

In the motherboard guide, the hard drive is appearing here, but you said to remove it in the previous step.

Here, I’m a little confused. The last step was to locate the cooling fan, but now you’re working on the copper tube. I would make a shot with the box highlighting the copper tube, instead.

possibly make a note informing the user that the screws can not be completely removed but they do however need to be completely unscrewed.

Is there a picture you have that shows the process of removing the tape? I think it might be helpful here. Also, remember to follow ROYGBIV.

Consider adding the location of the screws here (off the cooling fan). I would also suggest adding an action shot with the screws being removed.

Can you be clearer about how to remove the power cable? I would also reword the last step (e.g., Remove the cooling fan).

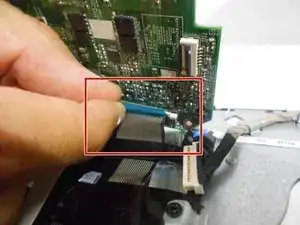

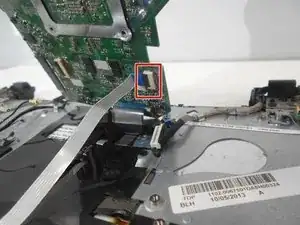

This step could be a little clearer; perhaps by breaking it down more and connecting it to the respective pictures.

e.g: Locate the wires/ribbon cables (1st picture)

note: These cables may be….. (2nd picture)

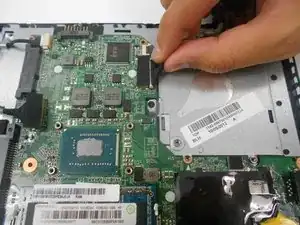

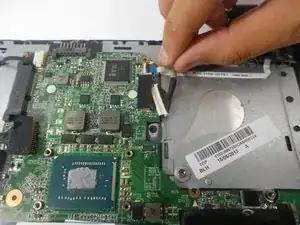

Disconnect the wires and ribbon cables (3 rd picture)

It would be helpful if the third picture had markups

I agree with the above comment.

Only use the circle markup for screws.

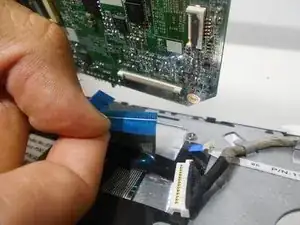

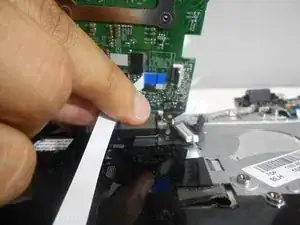

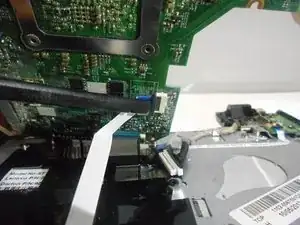

The third picture here is blurry—do you have a clearer version? I also think a clearer shot of where and how to remove the ribbon cables would be helpful—consider using this as its own step. Also, watch capitalization.
