Lenovo IdeaPad S340-15IWL RAM Replacement

Geschrieben von: Kristen Gismondi
  • Kommentare: 2
Lenovo IdeaPad S340-15IWL RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. PCo1BKIOIHWpQU5n
    PCo1BKIOIHWpQU5n
    IDrTLUE4nyumbAnG

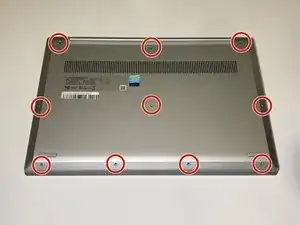

    • Power off the laptop and place it face-down on a non-scratching surface.

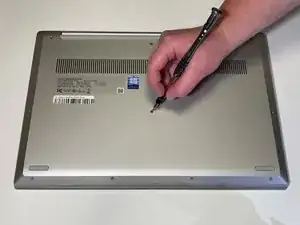

    • Using a Torx T5 screwdriver head, remove all ten 6 mm screws holding the back panel in place.

    The front center-right screw may be shorter (3.5mm) than the others (6.5mm), and may be captive in the back panel.

    Brad Bell -

  2. MixBWkKiRB1gACPo

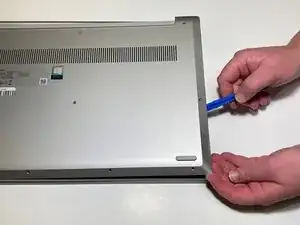

    • Slide a plastic opening tool underneath the back case near the screen hinges.

    • Gently pry up on either side of the case.

    • You may hear popping sounds as you pry up the back case. This is normal. If the case does not open, try prying at a different angle/position.

    Make sure when replacing the back cover to use the Small T5 Screw under the track pad or else the longer ones will make it so the pad wont click.

    Phillip Loftus -

  3. LxCKCZMdjhcqcHI4
    LxCKCZMdjhcqcHI4
    EeLsbQUWxFQmCRQw

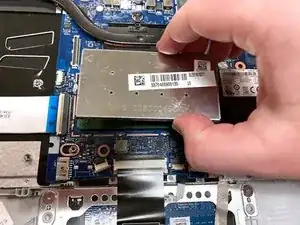

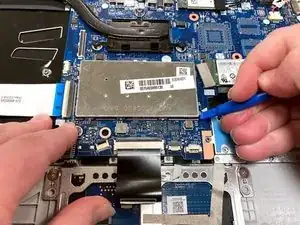

    • Using the opening tool, gently pop off the metal cover for the RAM stick.

  4. YwavJNOhiuMVYJGM
    YwavJNOhiuMVYJGM
    KpMXLPtGxCEJAHQr

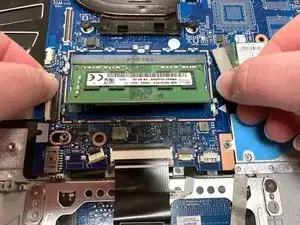

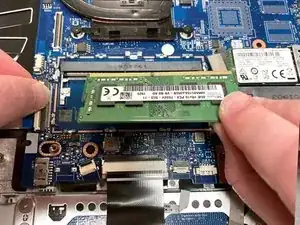

    • Using your thumbs, gently pull the two metal prongs that secure the RAM outwards.

    • The RAM will pop up at an angle.

    • Remove the RAM from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
