Lenovo IdeaPad S340-15IWL USB Port Board Replacement

Power off the laptop and place it face-down on a non-scratching surface.

Using a Torx T5 screwdriver head, remove all ten 6 mm screws holding the back panel in place.

Slide a plastic opening tool underneath the back case near the screen hinges.

Gently pry up on either side of the case.

Disconnect the battery cable by gently pulling it straight out of the connector.

Remove the battery from the laptop.

Remove the two 3 mm screws connecting the fan to the casing using a Phillips #0 screwdriver.

Using a spudger, gently disconnect the fan's cable from the motherboard.

Carefully unwind the black cable that runs between the top of the battery and the bottom of the fan from the grooves along the side of the fan.

In order to do so, you will need to pull up the metallic tape that holds the cable in place using either your fingers or a plastic prying tool to lift up the edge.

Carefully pick up the fan by the corners and detach the small connector wire by pulling parallel to the device.

Remove the fan from the laptop.

Unplug the wire connecting the speakers to the motherboard.

Remove the speakers from each side of the laptop.

Remove the four 3 mm screws holding the hard drive expansion slot in place using a Phillips #0 screwdriver.

Using the opening tool, gently pop off the metal cover for the RAM stick.

Using your thumbs, gently pull the two metal prongs that secure the RAM outwards.

Remove the RAM from the laptop.

Remove the three 3 mm screws that secure the black heat sink near the top of the computer using a Phillips #0 screwdriver.

Lift the heat sink vertically to remove it from the laptop.

Using an opening tool, carefully flip up the retaining flaps holding the silver video cable in place.

Slide the ribbon cable out of each connector.

Pull up the black foam adhesive that covers the screw and connectors holding the Wi-Fi card in place.

Using an opening tool, lift up on the black and white coaxial cables on the Wi-Fi card and gently pull upward to unplug them.

Remove the single 3 mm screw holding the Wi-Fi card in place using a Phillips #0 screwdriver.

Gently lift the Wi-Fi card out of the computer.

Using an opening tool, flip up the retaining flap that holds the connector to the thin black ribbon cable at the bottom of the motherboard.

Gently remove the ribbon cable from its connector.

The cable is folded over and connected to itself with an adhesive. Be careful to only pull at the top fold of the cable.

Remove the three total silver 6 mm screws from the hinges of the screen in the top corners of the device using a Phillips #0 screwdriver.

Use an opening tool to flip up the hinges.

Remove the three 3 mm screws holding the motherboard in place using a Phillips #0 screwdriver.

Carefully unplug the black and red wires connected to the upper right corner of the motherboard.

Carefully lift the motherboard from the base of the computer and remove it from the laptop.

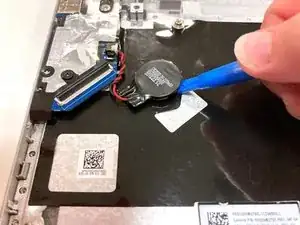

Remove the circular CMOS battery on the far left side of the computer by lifting it with your finger or an opening tool.

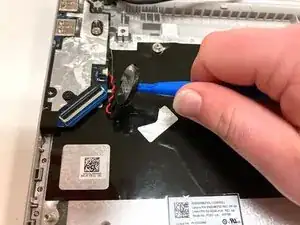

Unplug the bundled red and black wires connecting the CMOS battery to the side of the device.

Remove the CMOS battery from the laptop.

Remove the silver 6 mm screw holding the USB and SD card slots in place in the upper left corner of the device using a Phillips #0 screwdriver.

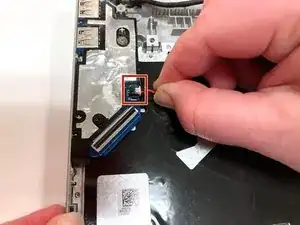

Remove the black 3 mm screw holding the USB and SD card slots in place in the upper left corner of the device using a Phillips #0 screwdriver.

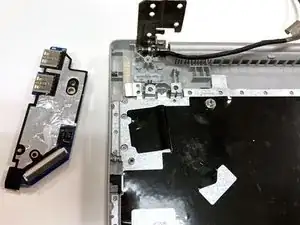

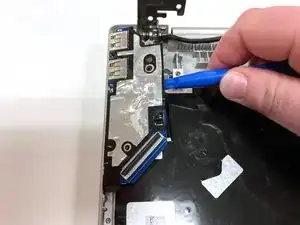

Use an opening tool to pry the port out of the device.
