If you need to replace the hard drive, follow this guide. For this guide you will need Phillips #0 screwdriver, from the iFixit tool kit to remove the back case. You will need a plastic spudger to remove the casing.
Werkzeuge
-
-

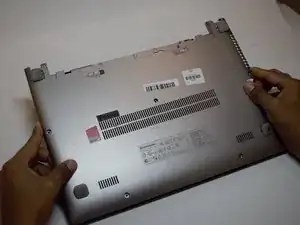

Turn your computer over so the back is face up.
-
Use your forefinger to unlock the two tabs located on the back. Slide the tabs until you see the red showing.
-
The battery cover will then pop up allowing you access to the battery.
-
-
-

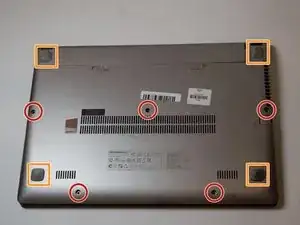

Remove the five 6mm Phillips #0 screws from the back panel.
-

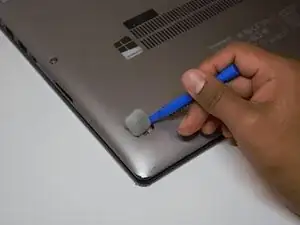

Pull back the rubber tabs from the corners of the laptop backing to expose the screws.
-
Remove the four 4mm Phillips #0 screws that are underneath the rubber tabs.
-
Remove the three 6mm Phillips #0 screws from under the battery.
-
-
-

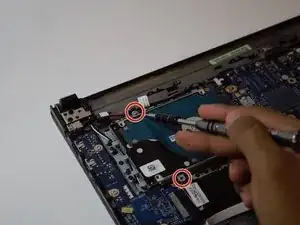

Remove the two 3mm Phillips #0 screws that hold the hard drive to the case.
-

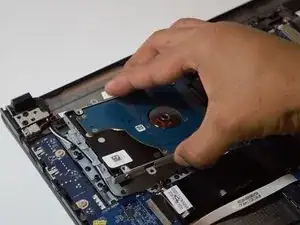

Take out the hard drive by lifting and sliding it at the same time.
-
To reassemble your device, follow these instructions in reverse order.
