Lenovo IdeaPad U410 RAM Replacement

Geschrieben von: Destiny
  • Kommentare: 0
Lenovo IdeaPad U410 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

  1. SjrCeNYo5YHpWadA
    SjrCeNYo5YHpWadA
    4iUW2lLaK1yVQ3nI

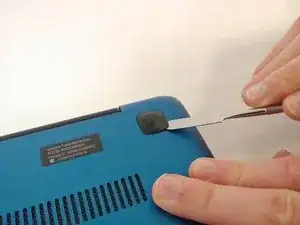

    • Using the metal spudger, remove all the rubber squares on the bottom of the laptop.

  2. geeNC5KDNZCXDP3g
    geeNC5KDNZCXDP3g
    NuuLSVPTpM5Lu2XX
    AFFoAWixoCrDKKjh

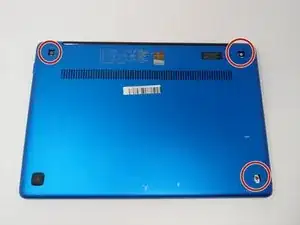

    • Remove the three 6 mm Phillips #1 screws holding the panel on the laptop.

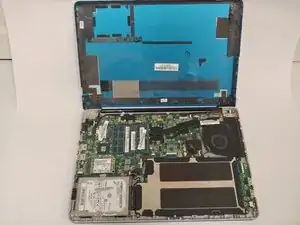

    • Pry the panel from the laptop using your hands or the metal spudger if necessary.

  3. uZhityedhxXKXuO1
    uZhityedhxXKXuO1
    cmmJdSZBKUKM5ZiK
    WQlPMv3fqBLmY1bL

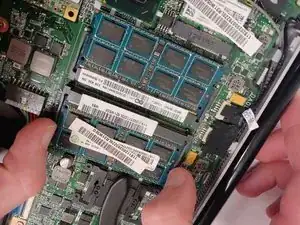

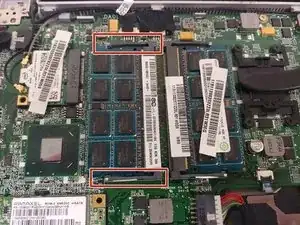

    • Using your hands, gently press on the two clips parallel to the sides of the RAM.

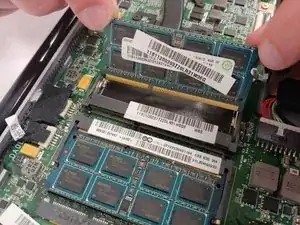

    • Remove RAM from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
