Lenovo IdeaPad U410 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

This screen replacement guide will show you how to replace your defective LCD screen on your Lenovo U410. You will need a Phillips #1 screwdriver and a metal spudger. Be careful when removing the plastic trim and connectors because you can easily break them.

  1. W3RsjoP2nqg1hnU5
    W3RsjoP2nqg1hnU5
    qkyQ1KIfjKNsGHcc

    • Make sure your laptop is turned off before disassembling.

    • Power off the laptop.

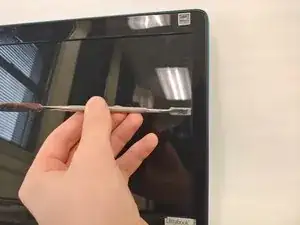

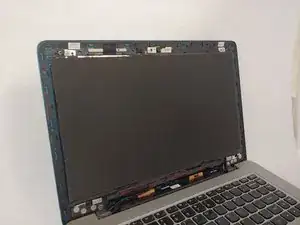

    • Using the metal spudger, gently pry off the black trim around the screen.

    • Metal spudger can be used, but using your hand will prevent the screen and the plastic border from any damage.

  2. UsfUeUH1IVLZ1iHi
    UsfUeUH1IVLZ1iHi
    glTcPiCTkZsuib2G

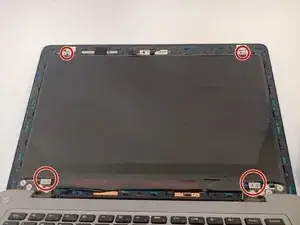

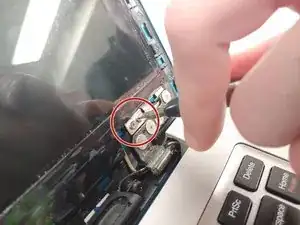

    • Remove the six 3 mm Phillips #1 screws holding the screen to the laptop.

    • Ignore the "Do not touch" label on the bottom portion of the screen. It will not damage the laptop.

  3. PSeaTkpMv2IGgNLI
    PSeaTkpMv2IGgNLI
    RdjafuKGcRWMLPsa
    kgOChYtgSwtanSMg

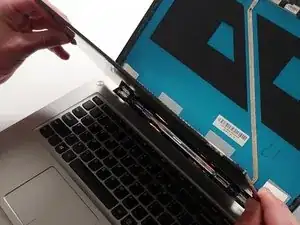

    • Lower LCD screen onto the keyboard.

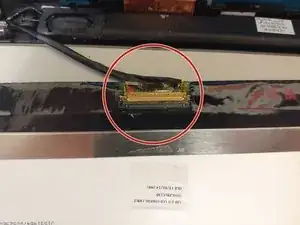

    • Find the gold connector on the bottom of the LCD panel.

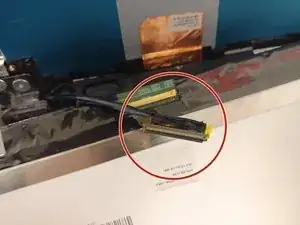

    • Gently grab the connector on both sides and pull the connector straight out.

    • Connector cable is very fragile. Use the least amount of force possible.

Abschluss

To reassemble your device, follow these instructions in reverse order.
