Einleitung

This guide will take 5 minutes and will require you to follow a prerequisite guide on how to remove the back cover. The solid state replacement will require a Phillips #1 screwdriver and a metal spudger.

  1. SjrCeNYo5YHpWadA
    SjrCeNYo5YHpWadA
    4iUW2lLaK1yVQ3nI
    • Using the metal spudger, remove all the rubber squares on the bottom of the laptop.

  2. geeNC5KDNZCXDP3g
    geeNC5KDNZCXDP3g
    NuuLSVPTpM5Lu2XX
    AFFoAWixoCrDKKjh
    • Remove the three 6 mm Phillips #1 screws holding the panel on the laptop.

    • Pry the panel from the laptop using your hands or the metal spudger if necessary.

  3. sxLNuSsxrY54sMoG
    sxLNuSsxrY54sMoG
    My3Xvf1qsMtKVSRG
    6aQodDEVOAxWbbDC
    • Make sure your laptop is powered off.

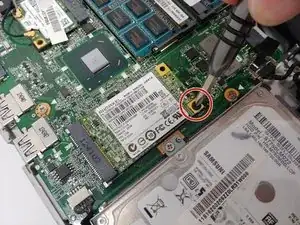

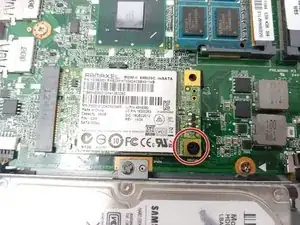

    • Use a Phillips #1 screwdriver to remove the 3 mm screw holding the SSD in place.

  4. 5mcEkX11XeYw64CR

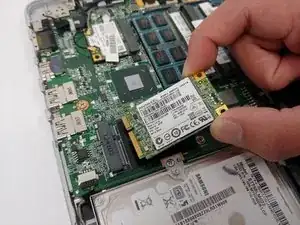

    • Grab the SSD and pull it out from the mSATA slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
