Einleitung
-
-
Power off your computer before you begin.
-
Find and remove the 10 Phillips style body screws on the bottom of the laptop case.
-
-
-
Remove 2 screws, 1 located on the left hinge cover and one located on the right hinge cover.
-
-
-
Starting from the front, use a plastic opening tool to separate the bottom of the case from the body of the laptop.
-
-
-

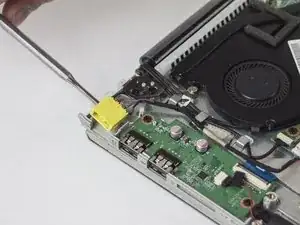

Disconnect charging port from motherboard.
-

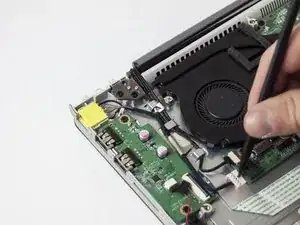

To do this, press the spudger on the center dimple and push the connector out.
-
-
-

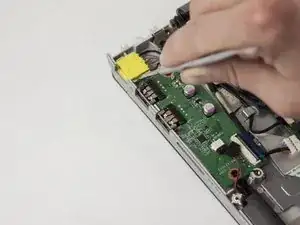

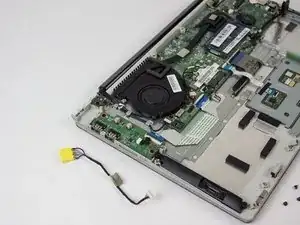

Pry the charging port out of the socket with a metal spudger.
-
It may be necessary to pry from each side.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
