Lenovo IdeaPad U430 Touch Hard Drive Replacement

Geschrieben von: Chris Dennis
  • Kommentare: 1
Lenovo IdeaPad U430 Touch Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will take you through the steps to replace a broken or missing hard drive in the Lenovo IdeaPad U430 Touch

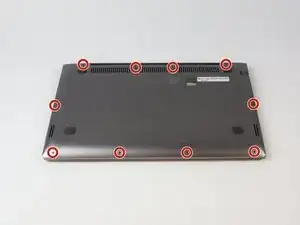

  1. XY6SciObRxlKCWdi

    • Power off your computer before you begin.

    • Find and remove the 10 Phillips style body screws on the bottom of the laptop case.

    • Remove 2 screws, 1 located on the left hinge cover and one located on the right hinge cover.

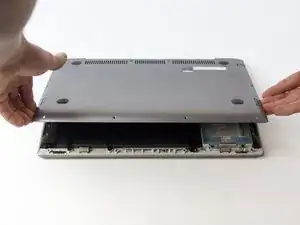

  3. XHupn6TJa2lENlyL
    XHupn6TJa2lENlyL

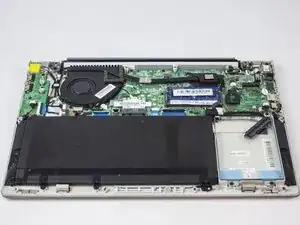

    2QnQk5eCYnwZCtN4

    • Starting from the front, use a plastic opening tool to separate the bottom of the case from the body of the laptop.

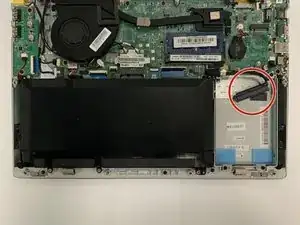

  4. YWXiMCmVe426E4jH

    • Unplug the hard drive from the 22-pin cable (LZ9 HDD cable).

    • At the time of guide creation, the device did not come equipped with the hard drive.

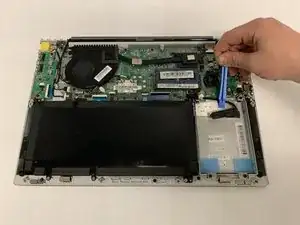

  5. bCTUWtE2TufG1ybX

    • Using the plastic opening tool, lift the hard drive from its compartment.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Chris Dennis

Mitglied seit: 20/02/20

190 Reputation

Ein Kommentar

1. Of the first 10 screws, you did not mention that 2 of them are longer.

2. You can't lift the hard drive out without removing 4 screws (one at each corner of the drive). The plastic tool is not needed for this.
