Lenovo IdeaPad U430 Touch Speaker Replacement

Geschrieben von: Patrick Ripkey
  • Kommentare: 0
Lenovo IdeaPad U430 Touch Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. XY6SciObRxlKCWdi

    • Power off your computer before you begin.

    • Find and remove the 10 Phillips style body screws on the bottom of the laptop case.

    • Remove 2 screws, 1 located on the left hinge cover and one located on the right hinge cover.

  3. XHupn6TJa2lENlyL
    XHupn6TJa2lENlyL
    2QnQk5eCYnwZCtN4

    • Starting from the front, use a plastic opening tool to separate the bottom of the case from the body of the laptop.

  4. DwKHtCqXZJJrBINA

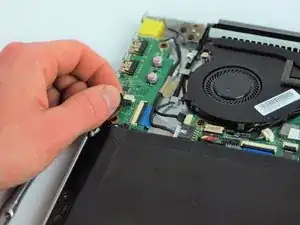

    • Disconnect the speaker cable connectors from the motherboard and/or USB board.

  5. V3tGopuUMBmIvEGG
    V3tGopuUMBmIvEGG
    IaaPpO5ajwdEdUbT

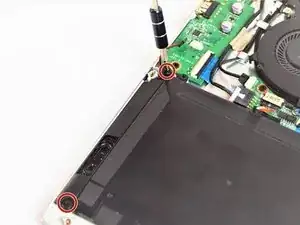

    • Unscrew the two 6.5mm screws from each speaker with a PH1 Phillips head screwdriver.

  6. 2eNK1RTPtFq4QYOL
    2eNK1RTPtFq4QYOL
    CiCiAKAf5DQ3D2vY

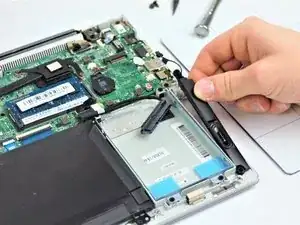

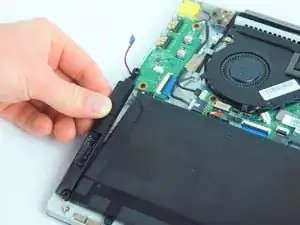

    • Remove and replace the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
