Einleitung
This guide will walk you through the process of replacing an unresponsive or broken trackpad for the Lenovo IdeaPad U430 Touch.
-
-
Power off your computer before you begin.
-
Find and remove the 10 Phillips style body screws on the bottom of the laptop case.
-
-
-
Remove 2 screws, 1 located on the left hinge cover and one located on the right hinge cover.
-
-
-
Starting from the front, use a plastic opening tool to separate the bottom of the case from the body of the laptop.
-
-
-

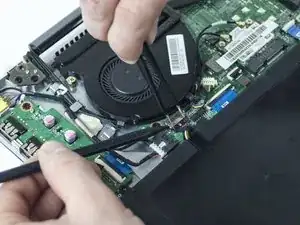

Using a combination of plastic opening tool and spudger, press in on the clips on the sides of the battery connector and push the connector out
-

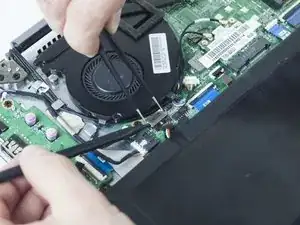

When you get the connector out far enough, grab behind the connector tabs with tweezers and wiggle the connector the rest of the way out.
-
-
-

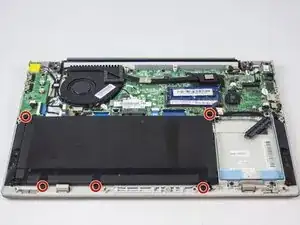

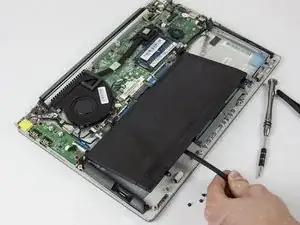

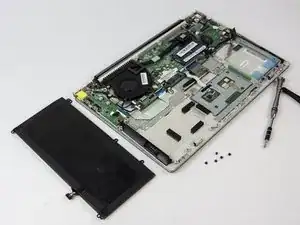

Once the battery is disconnected, lift up on the front of the battery and remove it from the laptop body.
-
-
-

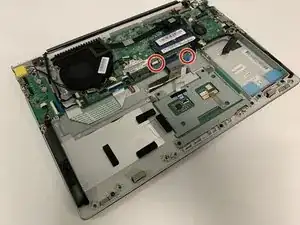

Remove the two 2.8 mm screws attached to the trackpad using the Phillips #1 screwdriver.
-

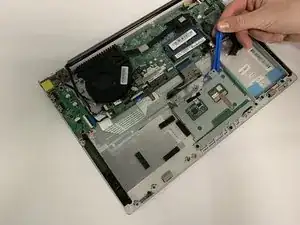

Detach the zif ribbon labeled "TP" and "MB" at the "MB" end.
-
To reassemble your device, follow these instructions in reverse order.
