Lenovo IdeaPad U450 Fan Replacement

Geschrieben von: Anna Church
  • Kommentare: 0
Lenovo IdeaPad U450 Fan Replacement

Schwierigkeitsgrad

Very easy

Schritte

12

Zeitaufwand

7 Minuten

Einleitung

This guide will provide instructions on how to replace the internal fan of your Lenovo IdeaPad U450.

  1. cRcLwQDCbaSU6jVO

    • Turn off and unplug your laptop to prevent the risk of electrocution.

    • Turn your laptop over so that the bottom is face up.

  2. GMVIWjVZMVEsDAyA

    • On the top left of the laptop there is a switch. Make sure it's pushed in the unlocked position.

  3. 2MrJIuWNfKqkAxlc

    • Locate the switch collinear with the last one and move the switch to an unlocked position.

  4. EuhxpdxXemRJtRGr

    • Remove the unlocked battery.

  5. VYhhO4EfPy3CKyuK

    • Turn the laptop over so that the bottom is facing up.

  6. EZT5aZ3IknakDHW1

    • Remove all 7mm phillips head screws using the Phillips #00 screwdriver.

  7. imoiBDIJHdUBDZ12

    • Turn the laptop over again and open the laptop.

  8. IIUs4OdQGsgHHo1x

    • Gently lift up the top panel utilizing the hole where the battery would be.

    • Keyboard ribbon cable is still connected. Flip the ZIF connector up and remove the ribbon cable.

  9. NJC6L5fEPi3WOPek

    • Disconnect any wires that are connected to the top panel from the bottom of the laptop.

  10. AMfqoAlj2WrFX3Ju

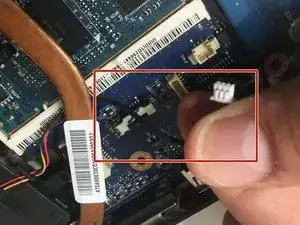

    • Unplug the bundled fan connector from the motherboard.

  11. GaEGaBrvF6TXPy4V

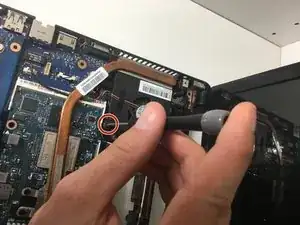

    • Unscrew all screws that hold the fan down using the Phillips #00 screwdriver.

  12. aFLYqBHCdtXra4xI

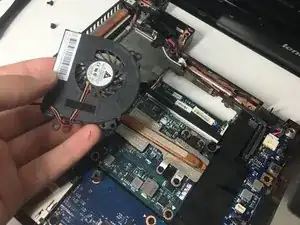

    • Remove the fan from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
