Lenovo IdeaPad U450 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 Minuten

Einleitung

The keyboard is an essential part of your computer and this guide will take you through the steps to replace your damaged one.

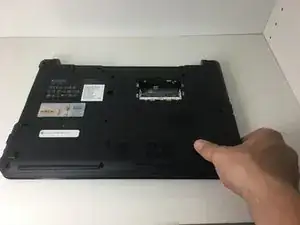

  1. cRcLwQDCbaSU6jVO

    • Turn off and unplug your laptop to prevent the risk of electrocution.

    • Turn your laptop over so that the bottom is face up.

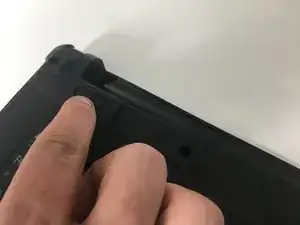

  2. GMVIWjVZMVEsDAyA

    • On the top left of the laptop there is a switch. Make sure it's pushed in the unlocked position.

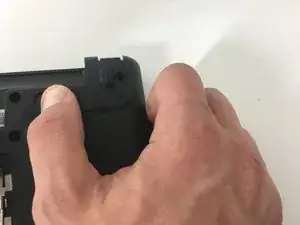

  3. 2MrJIuWNfKqkAxlc

    • Locate the switch collinear with the last one and move the switch to an unlocked position.

  4. EuhxpdxXemRJtRGr

    • Remove the unlocked battery.

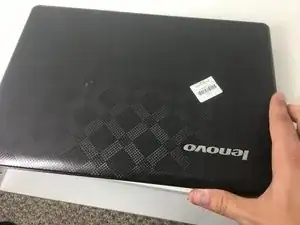

  5. 43DtuxaDdPfC2oEM

    • Flip the laptop so it's facing upwards.

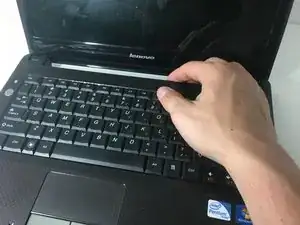

  6. fWYxbimiE1OKlvmb

    • Open the laptop.

  7. hk4MXGANH2qENPUf

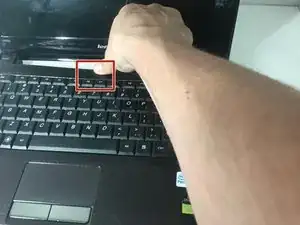

    • Press the most northern region above F6 and F7 until a bit of your keyboard pops out.

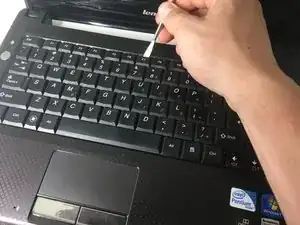

  8. SUeskf52DUT3lLij

    • Use the spudger to pry the top of the keyboard out.

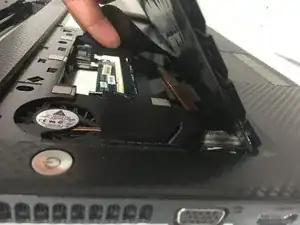

  9. TkjycH5GcHSBJDqV

    • Disconnect the wire connecting to keyboard to the laptop.

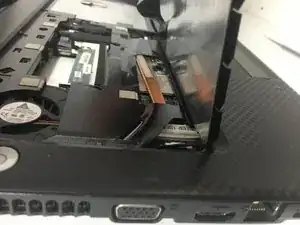

  10. VdaBVAtt2HvSXXvA

    • Remove the keyboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
