Lenovo IdeaPad U450 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

7 Minuten

Einleitung

This guide will take you through the steps to replace a damaged screen for the Lenovo IdeaPad U450.

  1. cRcLwQDCbaSU6jVO

    • Turn off and unplug your laptop to prevent the risk of electrocution.

    • Turn your laptop over so that the bottom is face up.

  2. GMVIWjVZMVEsDAyA

    • On the top left of the laptop there is a switch. Make sure it's pushed in the unlocked position.

  3. 2MrJIuWNfKqkAxlc

    • Locate the switch collinear with the last one and move the switch to an unlocked position.

  4. EuhxpdxXemRJtRGr

    • Remove the unlocked battery.

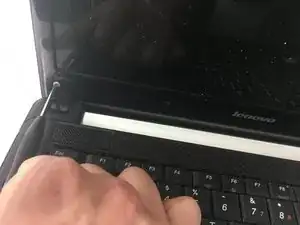

  5. RKlqfHTvyH3DQabJ

    • Open the laptop.

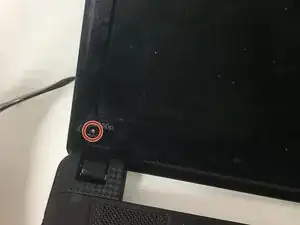

  6. 6J4WssPKbPfSdxup

    • Remove the four 7mm phillips head screws in the corners of the screen with a Phillips #00 Screwdriver.

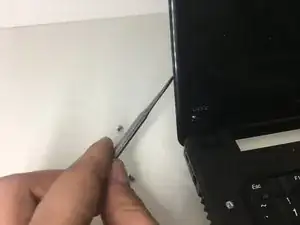

  7. TwwEvhgvNrFNG1Ei

    • Pry the screen out of the tabs with a spudger.

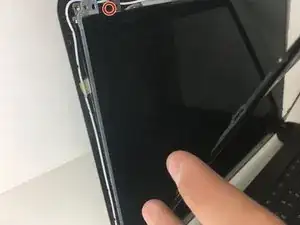

  8. HBMnRioCYxwxCqgQ

    • Remove the four 7mm phillips head screws located beneath the screen.

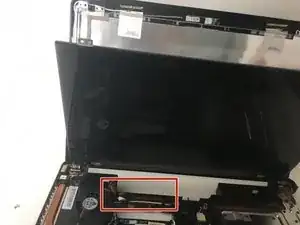

  9. Tv1eWfOsHGayZbQZ

    • Pop out the connector that links the screen to the motherboard.

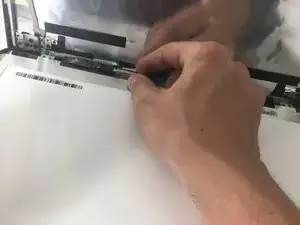

  10. HE2jtXmjWkIWSSvu

    • Pop the new screen into the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
