Einleitung
This is a step-by-step guide on how to replace the hard drive inside Lenovo IdeaPad U530 Touch laptop.
Symptoms related to hard drive failure are as follows:
- blue screens,
- loud scratching or clicking noises,
-and a “file not found” error when opening a file.
Make sure to wear gloves when operating inside the device.
Ersatzteile
-
-
Remove the back panel by removing all screws. Use a PH000 screwdriver head.
-
Make sure to also remove the hinge screws.
-
-
-
Locate and remove all screws attaching the battery to the hull of the computer. It is recommended that you use a JIS #1 screwdriver head for this task.
-
Be careful to keep track of all removed screws.
-
-
-
Detach the connection from the battery to the motherboard. This is the only connection that needs to be disconnected for the battery.
-
To remove the connection, please pull firmly, as it well secured.
-
-
-

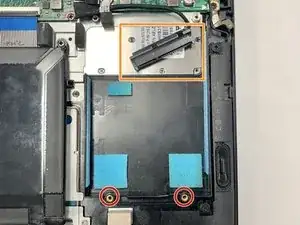

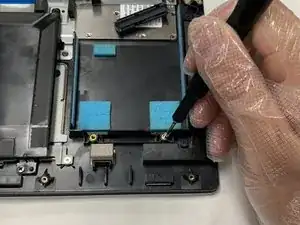

Remove two 3 mm screws connecting the hard drive to the computer base using a JIS #1 screwdriver.
-
Detach the connection from the hard drive to the motherboard.
-
Remove the hard drive from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
