Einleitung

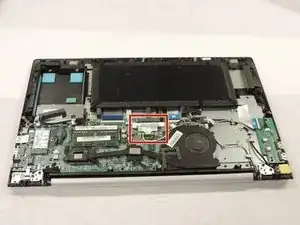

The network adapter is attached to the motherboard on this device. The back panel of the device must be removed to reach the adapter.
Ersatzteile
-
-

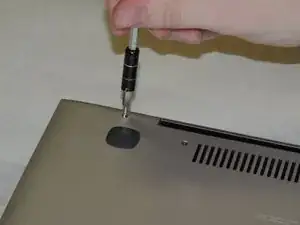

Remove all of the screws on the back panel with a Phillips #000 screwdriver.
-

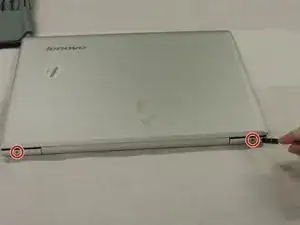

Turn over the device and remove the two screws on the outside of the hinges.
-
-
-

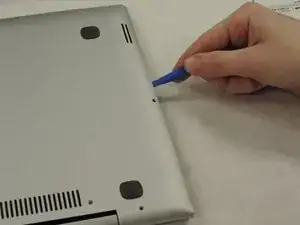

Use a pry tool or iFixIt Opening tool to separate the back panel from the device.
-

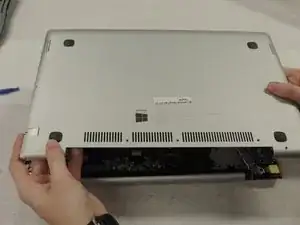

Lift the back panel straight up to remove.
-
-
-

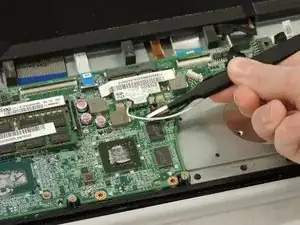

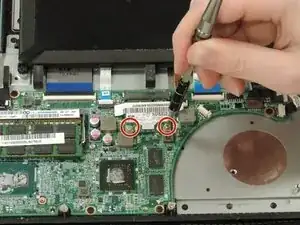

Remove the two screws attaching the network adapter to the motherboard.
-

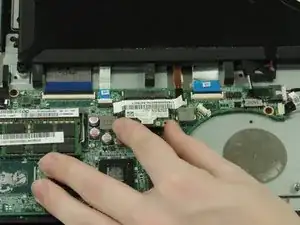

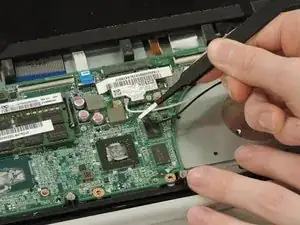

Remove the network adapter by sliding it down out of its connector.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
