This guide will show you how to remove the random access memory (RAM) in the Lenovo Ideapad U530 Touch.
RAM is a computer's short-term memory, which it uses to handle all active tasks and apps. None of your programs, files, games, or streams would work without RAM.
Ensure the device is unplugged and powered off; if possible, remove the battery before beginning disassembly.
-
-
Remove the back panel by removing all screws. Use a PH000 screwdriver head.
-
Make sure to also remove the hinge screws.
-
-
-
Locate and remove all screws attaching the battery to the hull of the computer. It is recommended that you use a JIS #1 screwdriver head for this task.
-
Be careful to keep track of all removed screws.
-
-
-
Detach the connection from the battery to the motherboard. This is the only connection that needs to be disconnected for the battery.
-
To remove the connection, please pull firmly, as it well secured.
-
-
-

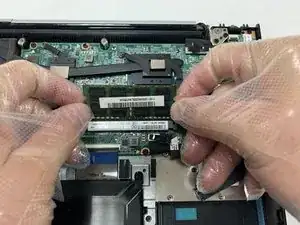

Carefully pull on the tabs on each side of the RAM to release it from its slot
-
Carefully pull the old RAM out of the laptop.
-
To reassemble your device, follow these instructions in reverse order.
