Lenovo IdeaPad Y400 Back Panel Replacement

Geschrieben von: Rachel Simmons
  • Kommentare: 0
Lenovo IdeaPad Y400 Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 - 3 Minuten

Einleitung

Use this guide to remove the back panel of your device. This guide will show you how to remove the back panel in order to remove other parts of the laptop.

  1. pi2MWBMrrLMpOGCm
    pi2MWBMrrLMpOGCm
    tKWgiRs5ibosiuXn
    VPFbUyPNbMTUFatX

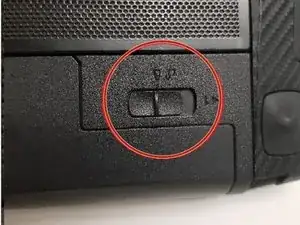

    • Make sure the laptop is upside down, then turn the laptop so that the battery is facing you. Now that the battery is facing you, there will be two locks, one on the left and one on the right.

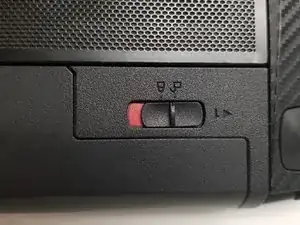

    • Slide the lock to the right until you can hear a "click". Once you hear this click, you should be able to see the color red.

  2. GZgLGbh5fDZLmurM
    GZgLGbh5fDZLmurM
    eq32WXkcxHPSirpW

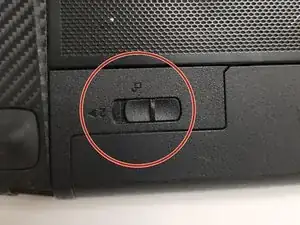

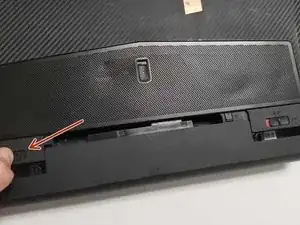

    • Unlike the first lock, the left lock does not stay in place. You will need to hold it in place as you take the battery out.

    • Slide the second (left) lock to the left and hold it there.

  3. GpqQeF1uXdupTCH5

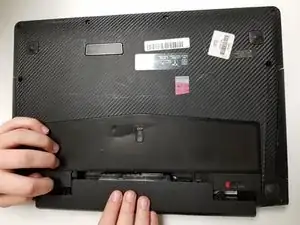

    • Gently pull the battery out.

  4. CvR2biTZml6XDyoa

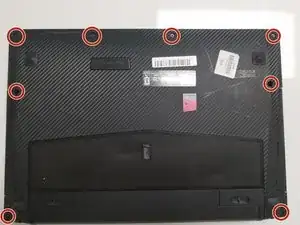

    • Remove the eight 9mm screws with a Phillips #0 screwdriver.

  5. 2Q2fEM6WZG1mRJHY
    2Q2fEM6WZG1mRJHY
    glH652Mv1qXxZJSk
    i3gp5BJjKKsXLoTu

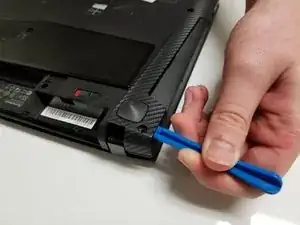

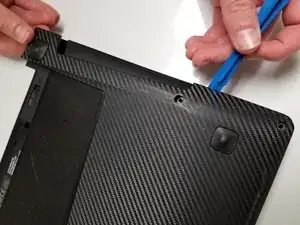

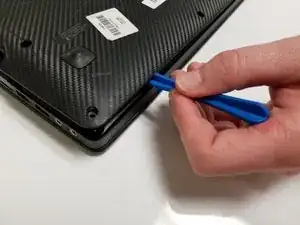

    • Use the plastic opening tool to remove the back panel from the device.

    • Be careful not to force the back off, as you may break the clips keeping it down.

Abschluss

To reassemble your device, follow these instructions in reverse order.
