Lenovo IdeaPad Y400 Motherboard Replacement

Geschrieben von: Rachel Simmons
  • Kommentare: 1
Lenovo IdeaPad Y400 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to replace the motherboard of your laptop.

  1. pi2MWBMrrLMpOGCm
    pi2MWBMrrLMpOGCm
    tKWgiRs5ibosiuXn
    VPFbUyPNbMTUFatX

    • Make sure the laptop is upside down, then turn the laptop so that the battery is facing you. Now that the battery is facing you, there will be two locks, one on the left and one on the right.

    • Slide the lock to the right until you can hear a "click". Once you hear this click, you should be able to see the color red.

  2. GZgLGbh5fDZLmurM
    GZgLGbh5fDZLmurM
    eq32WXkcxHPSirpW

    • Unlike the first lock, the left lock does not stay in place. You will need to hold it in place as you take the battery out.

    • Slide the second (left) lock to the left and hold it there.

  3. GpqQeF1uXdupTCH5

    • Gently pull the battery out.

  4. CvR2biTZml6XDyoa

    • Remove the eight 9mm screws with a Phillips #0 screwdriver.

  5. 2Q2fEM6WZG1mRJHY
    2Q2fEM6WZG1mRJHY
    glH652Mv1qXxZJSk
    i3gp5BJjKKsXLoTu

    • Use the plastic opening tool to remove the back panel from the device.

    • Be careful not to force the back off, as you may break the clips keeping it down.

  6. ZDTxyuRrOxEvlkNm
    ZDTxyuRrOxEvlkNm
    3PRImDiQZTwrjVLo

    • Move the lock down until you see red and hear a slight click.

  7. dFH1dvHQutJcL35c
    dFH1dvHQutJcL35c
    Z6d5TG4PRQcVHktD
    PXRiHSG2cRUqSOTR

    • Hold this lock down while removing the optical drive.

  8. 6tfimCTDVn26wGh2

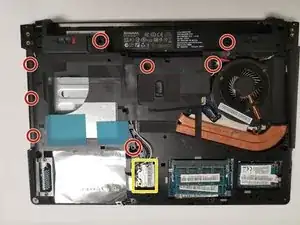

    • Unscrew the screws using a Phillips #0 screwdriver.

    • Unplug the wireless adapter to fully remove the motherboard.

    • If you don't want to break any of the parts you might want to take out the RAM, SSD, and the Hard Drive.

    • Screw sizes will be 4mm and 9mm

  9. oK3WVZVQLy44Avmk
    oK3WVZVQLy44Avmk
    YMnMqM2rdIaLvD6L
    kNRVsCnuIvgfSlEb

    • Use the plastic opening tool to take off the front panel.

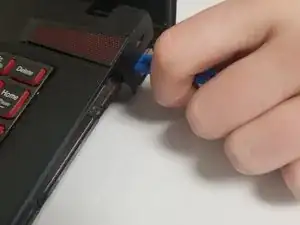

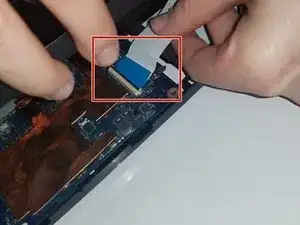

    • Unplug the blue wire to remove the front panel.

  10. maXkbphii6DVRuLZ

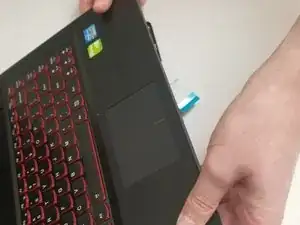

    • Fully remove the front panel.

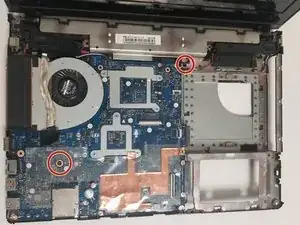

    • Unscrew the 9mm and 4mm screws (there is one of each screw).

  11. vqAB53XUcPFMmyVY
    vqAB53XUcPFMmyVY
    C4OGhCV1fbKsBYCS

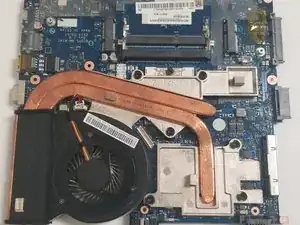

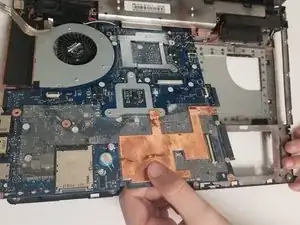

    • After unscrewing the screws, remove the motherboard.

    Where are the BiOS jumpers in this mother Lenovo Y400 ?

    gulshan71 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
