Einleitung

Use this guide to remove the optical drive of your laptop.

  1. pi2MWBMrrLMpOGCm
    pi2MWBMrrLMpOGCm
    tKWgiRs5ibosiuXn
    VPFbUyPNbMTUFatX
    • Make sure the laptop is upside down, then turn the laptop so that the battery is facing you. Now that the battery is facing you, there will be two locks, one on the left and one on the right.

    • Slide the lock to the right until you can hear a "click". Once you hear this click, you should be able to see the color red.

  2. GZgLGbh5fDZLmurM
    GZgLGbh5fDZLmurM
    eq32WXkcxHPSirpW
    • Unlike the first lock, the left lock does not stay in place. You will need to hold it in place as you take the battery out.

    • Slide the second (left) lock to the left and hold it there.

  3. GpqQeF1uXdupTCH5
    • Gently pull the battery out.

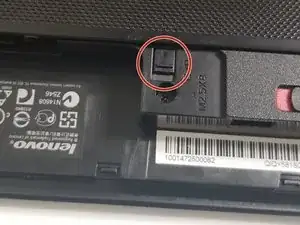

  4. ZDTxyuRrOxEvlkNm
    ZDTxyuRrOxEvlkNm
    3PRImDiQZTwrjVLo

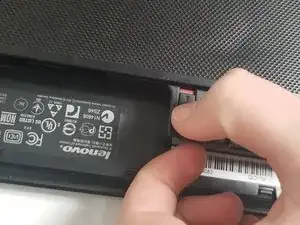

    • Move the lock down until you see red and hear a slight click.

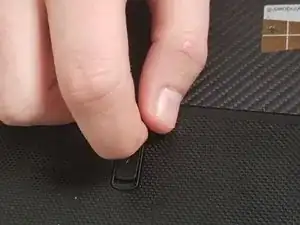

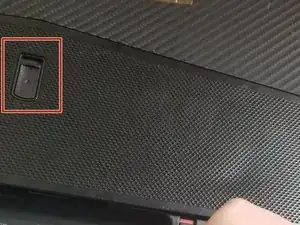

  5. dFH1dvHQutJcL35c
    dFH1dvHQutJcL35c
    Z6d5TG4PRQcVHktD
    PXRiHSG2cRUqSOTR

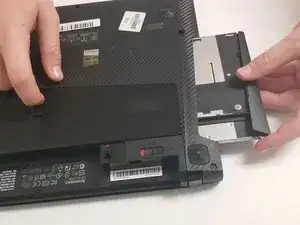

    • Hold this lock down while removing the optical drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
