Lenovo IdeaPad Y500 Fan Replacement

Geschrieben von: Tatum Hennige

Kommentare: 3

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

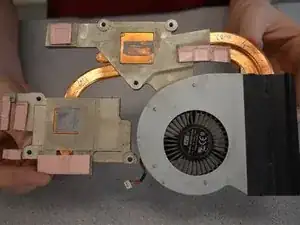

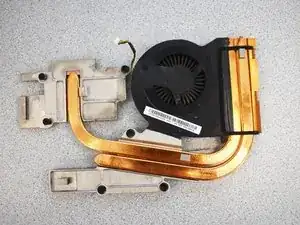

Use this guide to replace the fan on your Lenovo IdeaPad Y500. The heat sink assembly, the copper-colored extensions from the fan, is also attached to the fan of your device.

Werkzeuge

Schritt 1

Slide the lock on the right side until you hear a click. Once you hear a click , you should see the color red.

Schritt 2

Unlike the first lock, this lock is spring loaded and must be held in place when used.
Slide the lock to the left (in the direction of the arrow below the lock) and hold in place.

Schritt 3

Gently pull battery away from the computer while holding open the lock.

Schritt 4

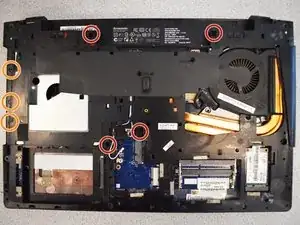

Remove a total of 8 screws.
Red circles are m2.5 x 10 mm flathead screws.
Orange circles m2 x 3mm flathead screws.
Yellow circle is m2.5 x 4mm flathead screw.

Schritt 5

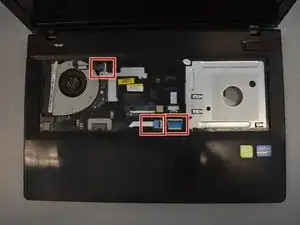

Flip up black tabs at the ends of each cable.
With fingers, gently remove the cables underneath from their ports.

Schritt 6

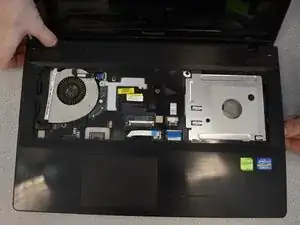

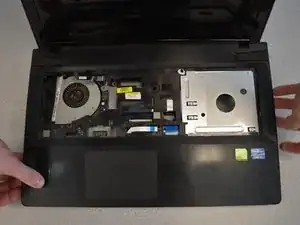

By unlatching the sides and pulling up, remove the top case from the device.
Casing is fragile, be careful not to twist when pulling up.

Schritt 7

Unlock the battery latch by pulling it up.
It should reveal red underneath when it's unlocked.

Schritt 8

Push the latch down and then hold in position.
Pull the optical drive out.

Schritt 9

Remove nine screws with a Phillips #1 screwdriver.

Can anyone tell me what size screws are for the bottom part of the case?

Sean -

Schritt 10

Pull up on the loosened cover to remove.
Remove two screws with a Phillips #1 screwdriver.

Schritt 11

Pull the tab straight to the left until part releases.
Lift up the part to remove completely.

Schritt 12

To release the DIMM, pull the tabs on either side away from each other simultaneously.
The DIMM will pop out on its own.

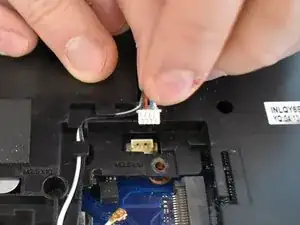

Schritt 13

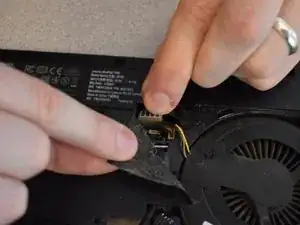

To disconnect the Wi-Fi cables, use a spudger to gently push up under them.
Wi-Fi cables are delicate.

Schritt 14

Using a Phillips #1 screwdriver, remove the two screws.
Once screws are out, the card will just pop out.

Schritt 15

Remove three screws using a Phillips #1 screwdriver.

Schritt 16

With the laptop upside down, open slightly.
To remove the keyboard, push the back of the keyboard forward with your thumb while pulling away from the laptop on the other side.
You will not be able to pull the keyboard completely away. The cables are still connected to the laptop.

Schritt 17

To release the cables, use the spudger to push both ends on the side of the cable.
Gently pull the cables up to disconnect.

Under my keyboard is just a solid piece with no cables behind it, they all run to the bottom of the keyboard where the clips are here…it is very odd. Any suggestions? I do have a Y500 and everything else looks the same up to this point.

Cody Templet - 31/01/21

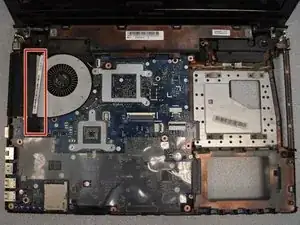

Schritt 18

Pull the keyboard up and away from the laptop to remove it.

Schritt 19

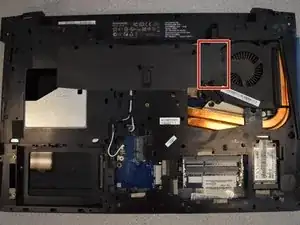

Peel up the black tab and remove the tape completely.
Remove the cable revealed underneath while pulling up the tape.
When reassembled, you will have to stick the tape back down in its original location in order to reinsert the cable.

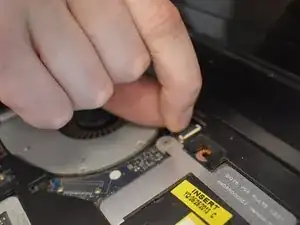

Schritt 20

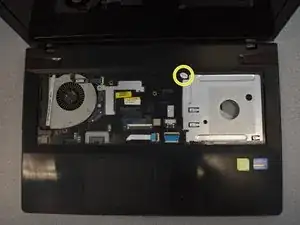

Flip the laptop back over.

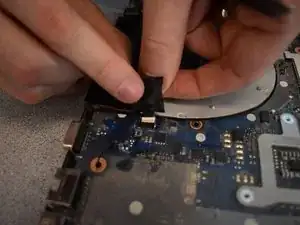

Gently pull the cable free by pulling up.

Schritt 21

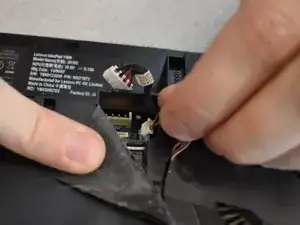

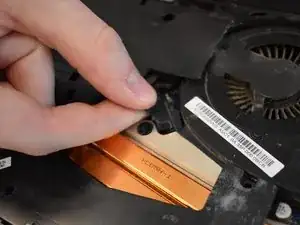

Peel back the black tape.

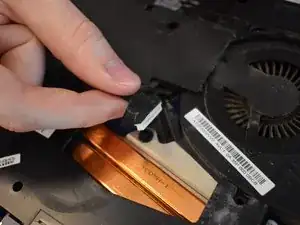

Gently pull out both cables revealed underneath from their sockets.
When reassembling, you will have to paste the tape back over the cables again.

what are the slot beside the ram ?

Kongson KES -

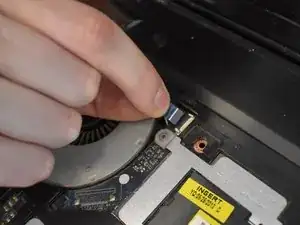

Schritt 22

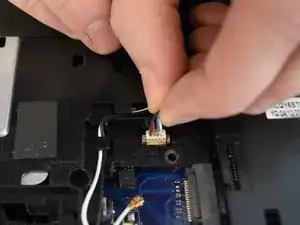

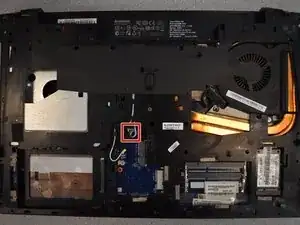

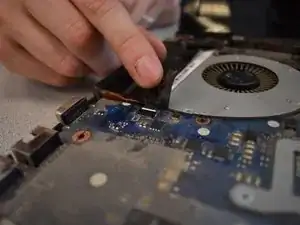

By gently pulling up, remove the final cable.

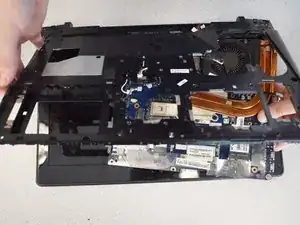

Schritt 23

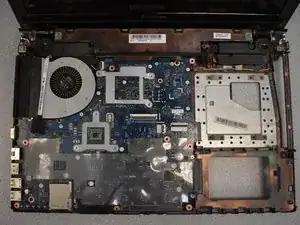

Pull motherboard down, away from the case, while lifting the base of the case up.

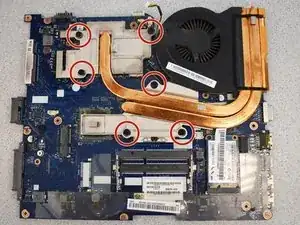

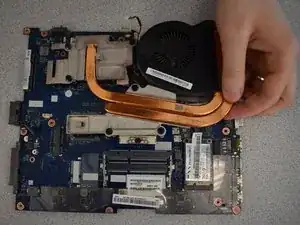

Schritt 24

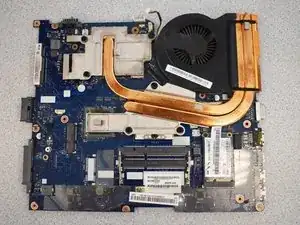

With a Phillips #1 screwdriver, loosen the six screws.
These screws are spring loaded. They will not come completely out. They only need to be loosened.
