Einleitung
Utilize this guide to remove or replace a keyboard that is no longer functioning correctly from a Lenovo IdeaPad Y500. Creating a backup for your hard drive is recommended in case of damage caused during keyboard removal. Unplug the computer before any further steps are completed to avoid damaging components of the device.
After removing the old keyboard, repeat all steps in reverse order(starting with the final step and finishing with step 1) to reassemble your device. Consult your local regulations concerning the disposal of electronic waste materials.
Werkzeuge
-
-

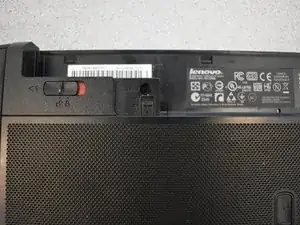

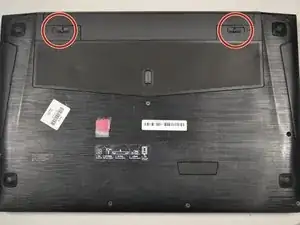

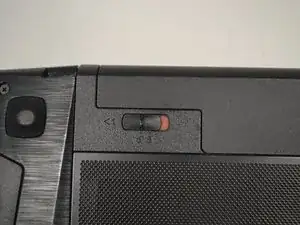

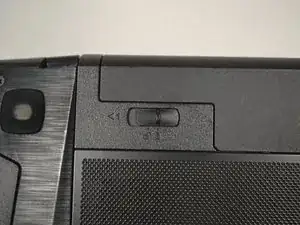

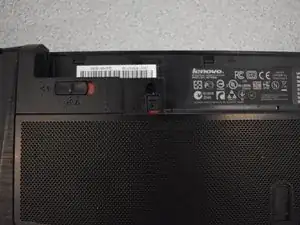

Slide the lock on the right side until you hear a click. Once you hear a click , you should see the color red.
-
-
-

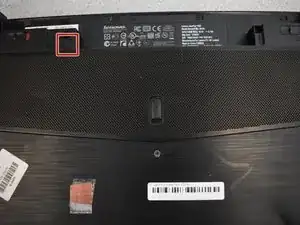

Slide the lock to the left (in the direction of the arrow below the lock) and hold in place.
-
-
-

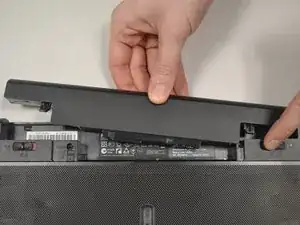

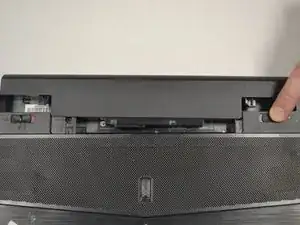

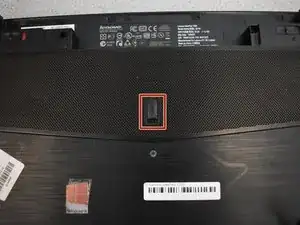

Unlock the battery latch by pulling it up.
-
It should reveal red underneath when it's unlocked.
-
-
-

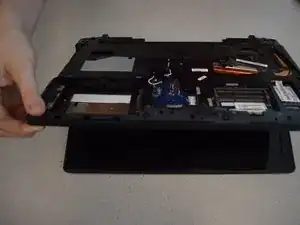

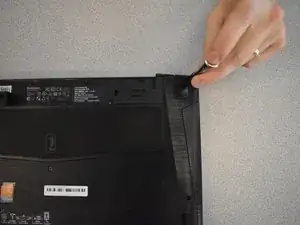

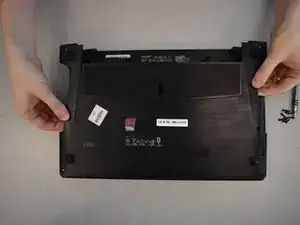

Pull up on the loosened cover to remove.
-

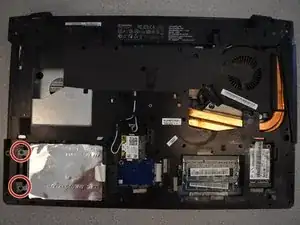

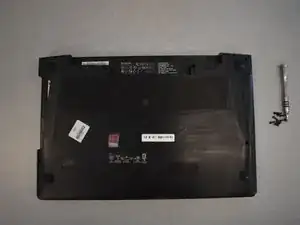

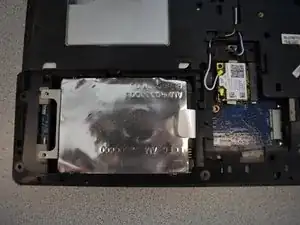

Remove two screws with a Phillips #1 screwdriver.
-
-
-

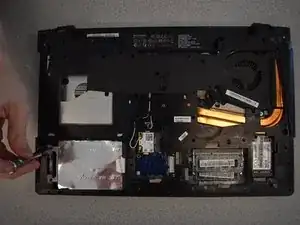

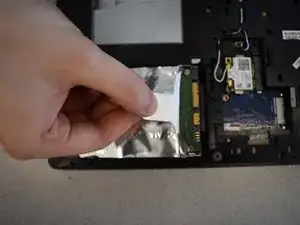

Pull the tab straight to the left until part releases.
-

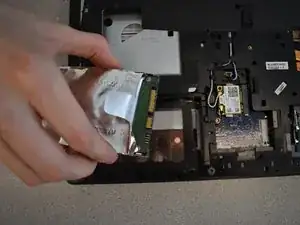

Lift up the part to remove completely.
-
-
-

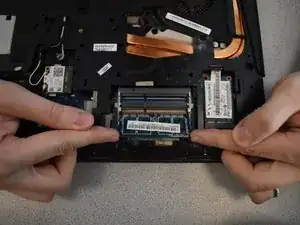

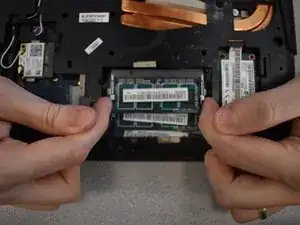

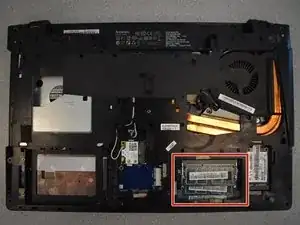

To release the DIMM, pull the tabs on either side away from each other simultaneously.
-
The DIMM will pop out on its own.
-
-
-

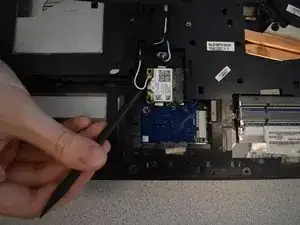

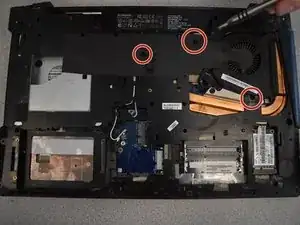

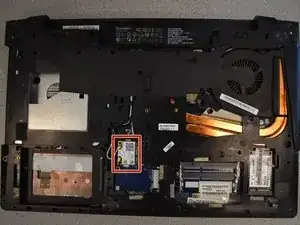

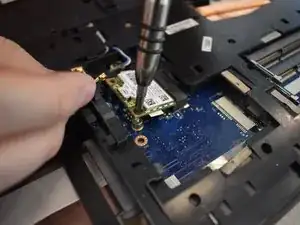

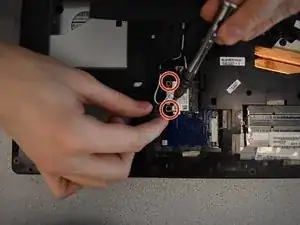

Using a Phillips #1 screwdriver, remove the two screws.
-

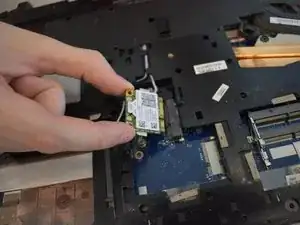

Once screws are out, the card will just pop out.
-
-
-
With the laptop upside down, open slightly.
-

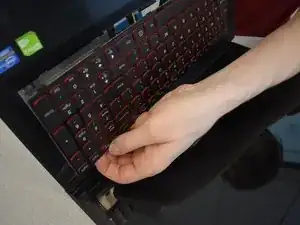

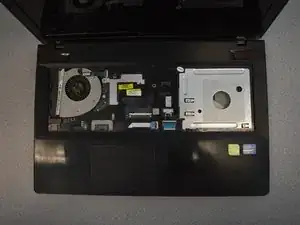

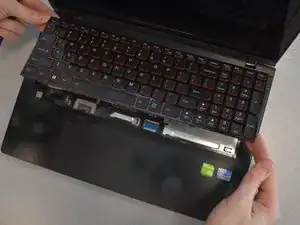

To remove the keyboard, push the back of the keyboard forward with your thumb while pulling away from the laptop on the other side.
-
-
-

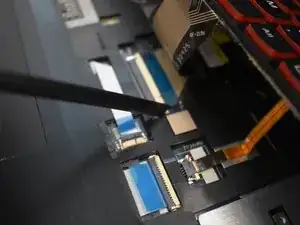

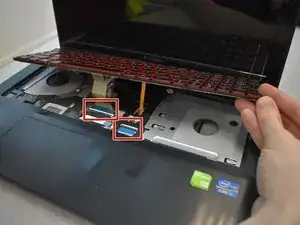

To release the cables, use the spudger to push both ends on the side of the cable.
-

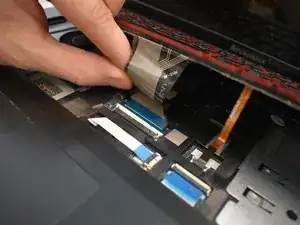

Gently pull the cables up to disconnect.
-
To reassemble your device, follow these instructions in reverse order.
