Lenovo IdeaPad Y510P Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

  1. fLx5VtDMQ24n1Zkl

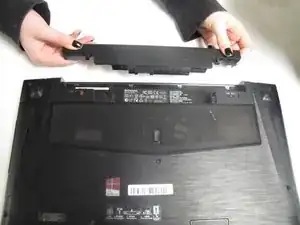

    • Turning over the laptop, look for two tabs that are located by the fan

    • Push these tabs to the opposite sides (left to right and vise versa.) when done correctly, you should see at least one tab with a red indicator on the right

    • Carefully remove the battery by slowly pulling the battery towards you, the battery should come out with no force

    • Fully discharge the laptop by pressing and holding the power button for 10 seconds after removing the battery. This ensures that there is no electricity in the laptop itself

  2. NINlTgeNfGrfLobM
    NINlTgeNfGrfLobM
    xewK4PpdQ1CZZd1v

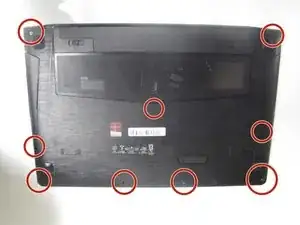

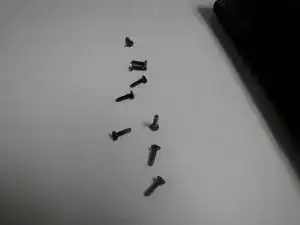

    • Take a JI head screwdriver and remove the nine screws holding the back panel down.

    • When done correctly, the back panel should come off with little difficulty. If there is resistance, make sure that all screws are removed

  3. PVRE5bXiPAXuLWAA

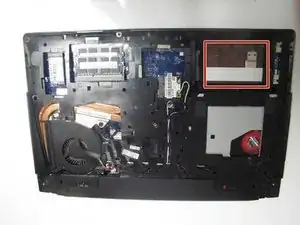

    • Gently lift and remove the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
